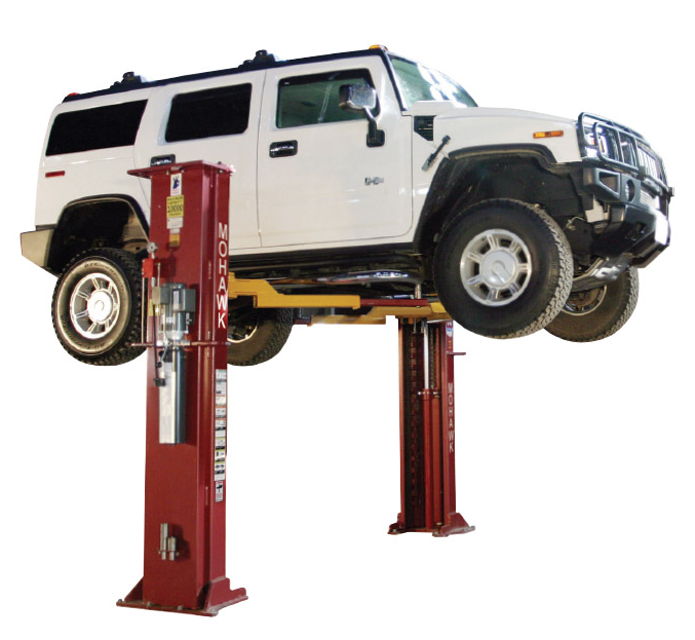

Mohawk Lifts Post Truck Lift TP-26A

Raise the unit approximately 3 feet

Disengage the off side mechanical safety

Lower the unit onto the main side mechanical safety

While continuing to hold down the power unit lowering handle, observe the off side carriage for movement. The unit has checked out OK if there is no movement (off side carriage does not continue to lower)

Every five years replace and re-bleed the hydraulic fluid. Always use a clean funnel and filter. Use Dexron III hydraulic fluid.

Inspect all bearings for unusual or excessive wear. Replace if needed.

Remove the swing arm restraints

Perform the daily, weekly, and monthly maintenance procedures.

Sign off on the truck lift maintenance

Warning: Only trained operators are allowed to perform this check

Operator is fully trained and qualified?

Work area is free of obstructions and clean?

Visual inspection of the unit done?

Floor and anchoring fasteners inspected?

Lifting pads and height adapters inspected for wear, rust, debris, or deformities?

Lifting pads and height adapters cleaned and oiled?

All mechanical safeties operate properly and consistently?

Pre-operation check list performed

Report any and all equipment malfunctions

Area around equipment free of dirt, sand, water, etc.

Sign off on the daily post truck lift maintenance

Inspect all hydraulic components for leaks, deformation, wear or corrosion

Tighten all fasteners, hydraulic / pneumatic fittings as required

All O - Ring boss fittings jam nuts are to be tightened to 15 foot pounds torque

All pipe fittings, if leaking are to be removed, re-sealed, and re - installed. ( Select - Unite thread sealant or equivalent on fitting threads )

Inspect mounting bolt conditions for any possible corrosion

Inspect the floor for any signs of fatigue or fractures

Sign off on the truck lift maintenance
