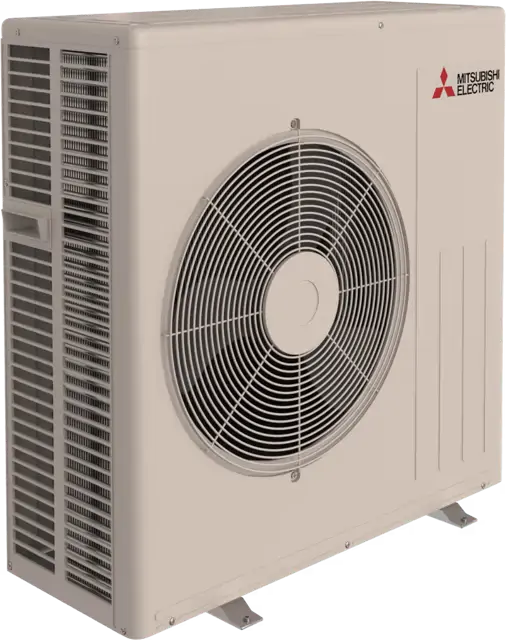

Mitsubishi Split System MUZ-GS12NAH

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Split System Model MUZ-GS12NAH

Integrate maintenance plans directly into your work orders in MaintainX.

Compressor Replacement

Preparation

Remove the cabinet and panels

Remove the inverter assembly

Reactor Removal

Remove the screws fixing the reactor

Remove the reactor

Soundproofing and Gas Recovery

Remove the soundproof felt

Recover gas from the refrigerant circuit

Run this procedure

Outdoor Fan Motor Replacement

Panel and Cabinet Removal

Remove the top panel

Remove the cabinet

Remove the service panel

Disconnect Connectors

Disconnect connectors CN931 and CN932 from the inverter P.C. board

Propeller Fan Removal

Remove the propeller fan nut (reverse thread)

Remove the propeller fan

Run this procedure

Inverter P.C. Board Replacement

Preparation

Remove the top panel, cabinet, and service panel

Disconnect the lead wire to the reactor

Disconnect Connectors

Disconnect CN721 (R.V. coil) (MUZ)

Disconnect CN722 (Defrost heater and heater protector) (MUZ-GS09/12/15NAH, MUZ-GS09/12/15NAHZ)

Disconnect CN931, CN932 (Fan motor)

Disconnect CN641 (Defrost thermistor (MUZ) and discharge temperature thermistor)

Disconnect CN643 (Ambient temperature thermistor)

Run this procedure

Outdoor Thermistors Replacement

Preparation

Remove the cabinet and panels

Disconnect Connectors

Disconnect the lead wire to the reactor

Disconnect connectors CN671 and CN672

Remove Thermistors

Pull out the discharge temperature thermistor from its holder

Pull out the defrost thermistor from its holder

Pull out the outdoor heat exchanger temperature thermistor from its holder

Run this procedure

Reversing Valve Coil Replacement

Preparation

Remove the cabinet and panels

Disconnect Connectors

Disconnect CN721 (R.V. coil) (MUZ) from the inverter P.C. board

Coil Removal

Remove the R.V. coil

Run this procedure
