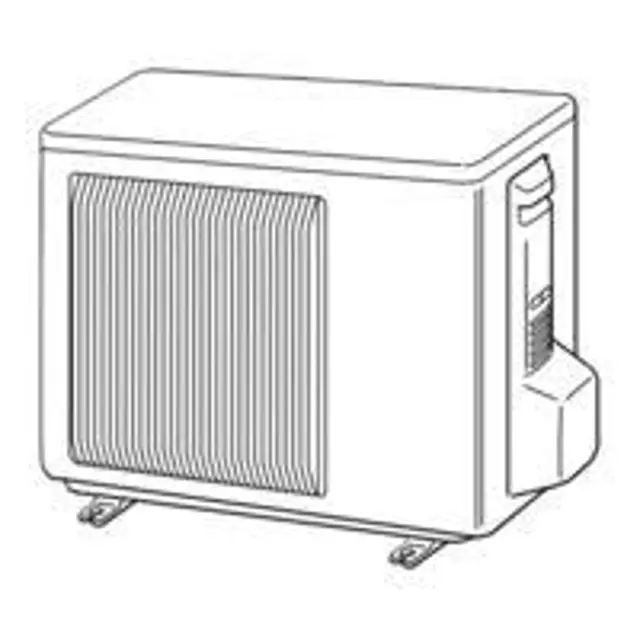

Mitsubishi Split-Type Air Conditioner MUZ-GE50VAD
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type Air Conditioner MUZ-GE50VAD
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type Air Conditioner MUZ-GE50VAD
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model MUZ-GE50VAD
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Fan Motor Disassembling
Remove the top panel, cabinet and service panel
Disconnect the connectors: CN931 and CN932 (Fan motor)
Remove the propeller
Remove the screws fixing the fan motor
Remove the fan motor
Cabinet Disassembling
Remove the screws of the service panel
Remove the screws of the top panel
Remove the screw of the valve cover
Remove the service panel
Remove the top panel
Remove the valve cover
Disconnect the power supply and indoor/outdoor connecting wire
Remove the screws of the cabinet
Remove the cabinet
Compressor and 4-Way Valve Disassembling
Remove the top panel, cabinet and service panel
Remove the back panel
Remove the inverter assembly
Recover gas from the refrigerant circuit until the pressure gauge shows 0 MPa
Detach the brazed part of the suction and the discharge pipe connected with compressor
Remove the compressor nuts
Remove the compressor
Detach the brazed parts of 4-way valve and pipe
Upload a photo of the detached 4-way valve and pipe
Inverter Assembly and Inverter P.C. Board Disassembling
Remove the cabinet and panels
Disconnect the lead wire to the reactor
Disconnect the following connectors
Remove the compressor connector (CN61)
Remove the screws fixing the relay panel
Remove the inverter assembly
Remove the screw of the earth wire and screw of the T.B.support
Remove the screw of the PB fixture
Remove the relay panel from the PB support
R.V. Coil Disassembling
Remove the cabinet and panels
Disconnect the connectors from the Inverter P.C. board
Disconnect the CN721 (R.V. coil)
Remove the R.V. coil
Parts for Mitsubishi Split-Type Air Conditioner MUZ-GE50VAD
Access the parts list for your equipment in MaintainX.
Compressor
SNB130FGBHT
Fan Motor
RC0J60-AA
Compressor
SNB130FGBHT
Fan Motor
RC0J60-AA
Compressor
SNB130FGBHT
Fan Motor
RC0J60-AA
