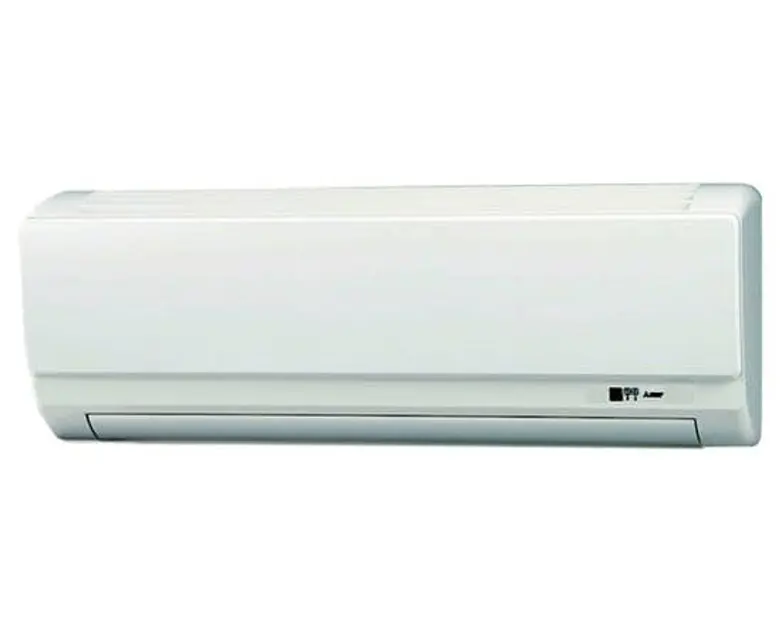

Mitsubishi Indoor Unit PKFY-P25VBM-ER3

1. REMOVING THE LOWER SIDE OF THE INDOOR UNIT FROM THE INSTALLATION PLATE:

(1) Remove the corner box at right lower side of the indoor unit and remove the removing plate from the corner box. (See Figure 3)

(2) Insert the removing plate at the back side of the corner box to remove the indoor unit.

(3) Remove the hook by pulling the lower side of the indoor unit down as shown in the Figure 1.

When there is no removing plate or it cannot be used for some reason.:

(2) Insert the screw driver to the corner hole at both left and right side as shown in the Figure 2.

(3) Push it up, then pull down the lower side of indoor unit and remove the hook.

Check that cylinder for R410A on the market is syphon type

Charging should be performed with the cylinder of syphon stood vertically

Refrigerant is charged from liquid phase

Sign off on the refrigerant charging
