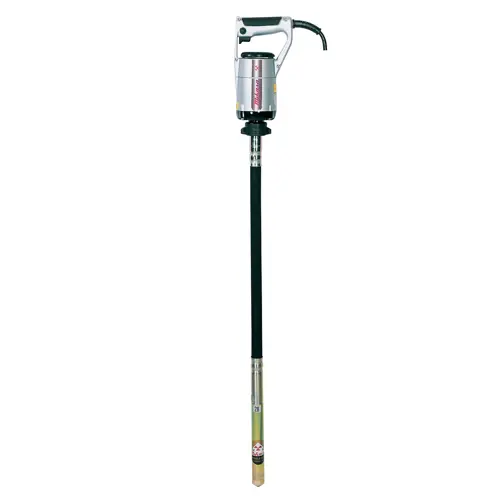

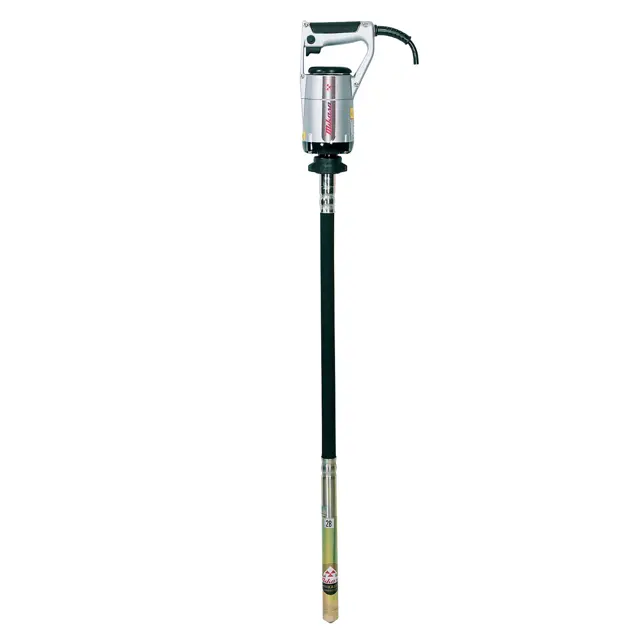

Mikasa Portable Vibrator MGX-32

Enter the machine's hour meter reading

Is the grease on the flexible shaft and bearing clean?

If not, wipe off the grease on the flexible shaft and bearing

Apply new grease evenly on the entire surface of the shaft

Pull out the rotor from the vibrating case

Wash well the inside of the case and the bearing of the rotor

If yes, fill it sufficiently with grease. Do not put grease inside the case

Use heat resistant grease that will not be deteriorated by change in temperature. Use [for example, Pyronoc No.2 of Nippon Oil Corporation (previously Nisseki Mitsubishi)]

WARNING! Before inspection and maintenance work, always turn off the switch and unplug from the power outlet.

Check the cord regularly, and if damage is detected, contact the sales store for repair.

If repair is done by someone without proper repair knowledge or skill, the machine will not function properly, and even accident and injury might occur.

When using a connection (extension) cord, check it regularly and if damage is detected, replace it with a new one.

Keep the holding part dry and clean all the time. Keep the holding part free of oil and grease.

DANGER! Always turn off the switch and unplug from the power outlet before starting check or maintenance work.

Check of bolts used to fix parts.

Remove the mortar that has adhered at the air vent (cap).
