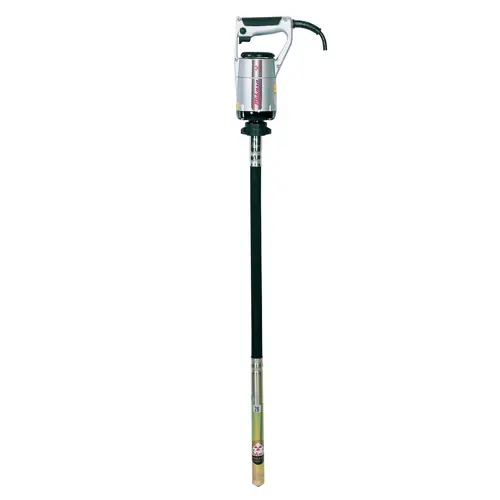

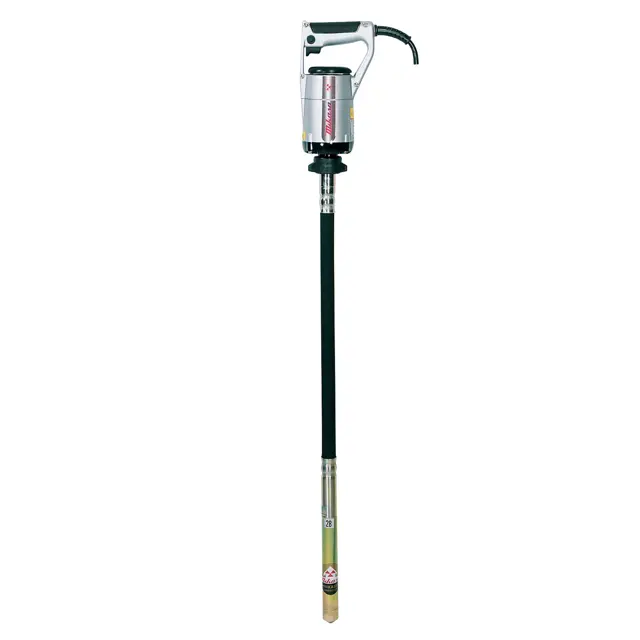

Mikasa Portable Vibrator MGX-28

WARNING! Before inspection and maintenance work, always turn off the switch and unplug from the power outlet.

If repair is done by someone without proper repair knowledge or skill, the machine will not function properly, and even accident and injury might occur.

Connection (extension) cord checked for damage

Holding part kept dry and clean

DANGER! Always turn off the switch and unplug from the power outlet before starting check or maintenance work.

Bolts used to fix parts checked for looseness

Mortar removed from the air vent (cap)

Enter the machine's hour meter reading

Is the grease on the flexible shaft and bearing clean?

If not, wipe off the grease on the flexible shaft and bearing

Upload a photo of the cleaned shaft and bearing

Apply new grease evenly on the entire surface of the shaft

Upload a photo of the greased shaft

Pull out the rotor from the vibrating case, then wash well the inside of the case and the bearing of the rotor

Upload a photo of the cleaned case and bearing

When a new bearing is used, fill it sufficiently with grease. Do not put grease inside the case
