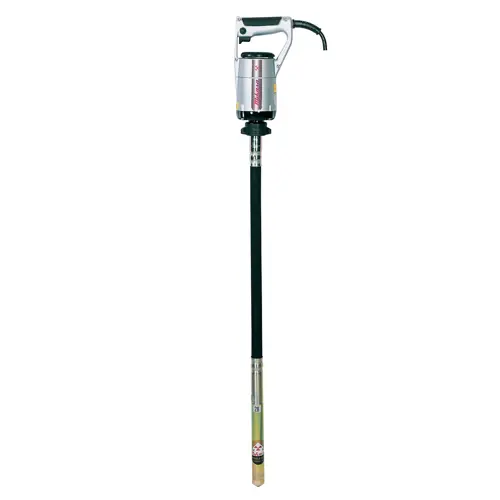

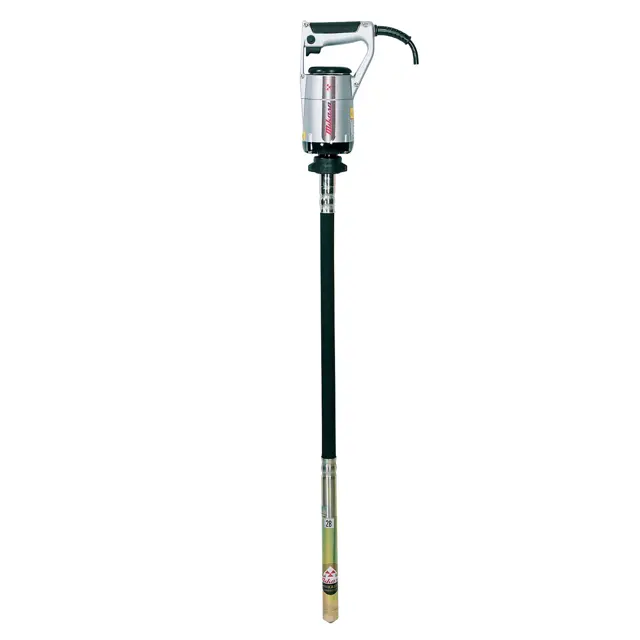

Mikasa Portable Vibrator MGX-23

Check of grease on flexible shaft and bearing.

• After each operation of about 200 hours, cleanly wipe off the grease on the flexible shaft and bearing, then apply new grease evenly on the entire surface of the shaft. Pull out the rotor from the vibrating case, then wash well the inside of the case and the bearing of the rotor.

• When a new bearing is used, fill it sufficiently with grease. Do not put grease inside the case.

• Use heat resistant grease that will not be deteriorated by change in temperature. Use [for example, Pyronoc No.2 of Nippon Oil Corporation (previously Nisseki Mitsubishi)].;

WARNING! Before inspection and maintenance work, always turn off the switch and unplug from the power outlet.

Do maintenance work carefully. Check the cord regularly, and if damage is detected, contact the sales store for repair.

DANGER! Always turn off the switch and unplug from the power outlet before starting check or maintenance work.

Check of bolts used to fix parts. If looseness is found, tighten again securely.

Remove the mortar that has adhered at the air vent (cap). If the air vent is clogged, overheating occurs, which might result in burnout.

WARNING! For vibrator repair, please contact your distributor. This product complies with the applicable safety requirements. Please do not try to make alterations.

Check of carbon brush. If you notice a drop in motor revolution or lowering of the force, remove the back cover of the motor to check the wear of carbon brush.

CAUTION! Make sure to use a MIKASA genuine carbon brush when replacing the carbon brush with a new one.

Sign off on the portable vibrator maintenance
