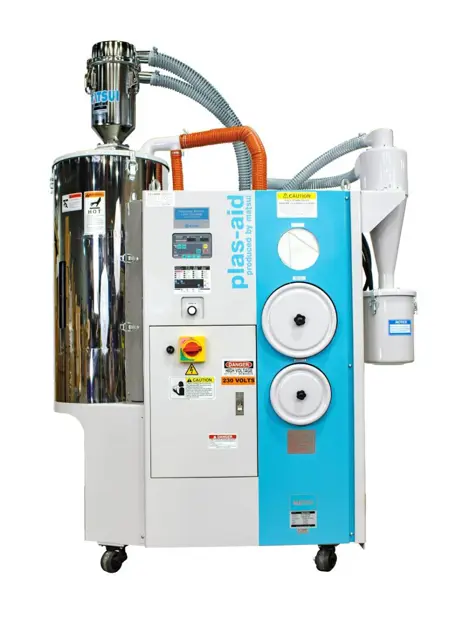

Matsui Dryer MJ3-50

Turn OFF the operation 'ON/OFF' switch of the device

Turn OFF the power breaker on the right side of the control panel

Open the control panel of the device

Remove the cover on the back side of the control panel (screwed at three points)

Identify the second lowest relay for the drying heater

Wear a mask to prevent inhalation of particles

Remove the filter and blow clean dry air to remove clinging particles

Ensure the surroundings around the unit are clean

Set the filter in the original condition and fasten securely

Dust hopper for air source unit

Remove the dust hopper and clean the dust inside

Check gasket on the edge of the dust hopper for scratches or absence

Press the drain valve in the bowl lower part to discharge drainage

Receive the drainage with a can or similar container

Jet Clone Collection Unit Filter Cleaning

Open the SUCTION HOPPER lid and remove the screen filter

Ensure the unit is stopped and the power breaker is turned OFF

Clean the gas ingredient adhered to the cooling jacket (OUT)

Clean the gas ingredient adhered to the cooling jacket (IN)

Push the SV switch of the controller once and confirm the 'SV' indicator lights up.

Enter the displayed dry temperature.

Is the dry temperature within ±2~3°C of the setting value?

Display the dry temperature on the controller indicator.

Press RESET and SV switches at the same time to display the actual regeneration temperature.

Enter the displayed regeneration temperature.

Is the regeneration temperature within 180~220°C?
