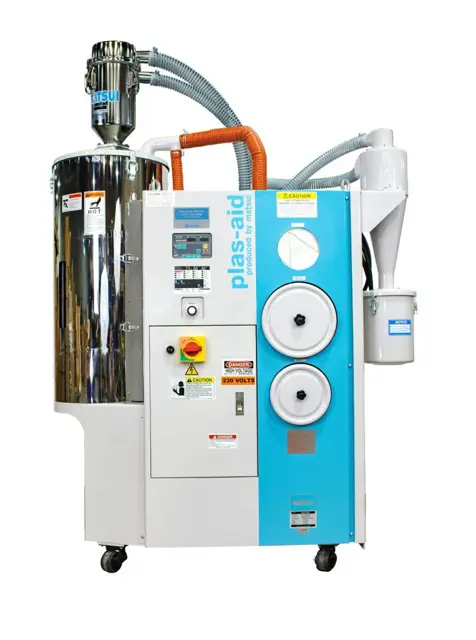

Matsui Dryer MJ3-10

Clean the gas ingredient from cooling jacket (OUT)

Wear a mask to prevent inhalation of particles

Remove the filter and blow clean dry air to remove clinging particles

Ensure the surroundings around the unit are clean

Set the filter in the original condition and fasten securely

Ensure the unit is stopped and the power breaker is turned 'OFF' before starting maintenance.

Rising Fastens for the Terminal

Confirm the loosening of the wiring connection part of the electronics equipment inside the control panel and in the unit.

Perform rising fastens in the connection part if any loosening is found.

Check that the stopper (M6) on the upper and lower two points are not loosened.

Retighten the stopper according to the 'Stopper adjusting diagram' if loosened.

Remove the cover and check that the hexagon socket head locking screw of the removable cam is not loosened.

Push the SV switch of the controller once and confirm the 'SV' indicator lights up

Enter the displayed dry temperature

Is the dry temperature within ±2~3°C of the setting value?

Display the dry temperature on the controller indicator

Press RESET and SV switches at the same time to display the actual regeneration temperature

Enter the displayed regeneration temperature

Is the regeneration temperature within 180~220°C?

Inspection of Electromagnetic Switch Unit

Check for degradation on the electromagnetic switch unit

Is there obvious deterioration on the electromagnetic switch unit?

Check for degradation on the contactor unit

Is there obvious deterioration on the contactor unit?
