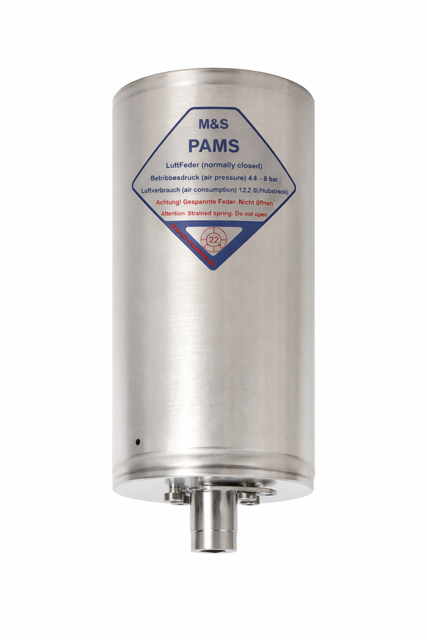

M&S Armaturen Pneumatic Actuator PAMS1 DA

Ensure the butterfly valve disc is in the correct position

Mount the actuator to avoid damage from transport vehicles

Observe relevant national guidelines and regulations

Put butterfly valve switch cam (4.1) onto the drive shaft of the pneumatic actuator (1)

Attach bracket SVV04 (3.1) with hexagon socket head cap screws (5.1) to the pneumatic actuator (1) with a torque of 3Nm

Push the pneumatic actuator (1) with mounted bracket SV04 (3.1) and butterfly valve switch cam (4.1) over the butterfly valve (2.1) ensuring proper engagement

Put hexagon socket head cap screws (6.1) into the side holes of the bracket SV04 (3.1) and butterfly valve type SV04 (2.1)

Ensure the actuator is not modified

Ensure the actuator is not opened

Be cautious of the tensioned spring

Use commercial cleaning agents to clean the pneumatic actuator

Refer to assembly instructions for assembly/disassembly

Ensure the butterfly valve is included in the potential equalisation

Is the butterfly valve disc in the correct position?

Is the actuator mounted to avoid damage?

Are national guidelines and regulations being observed?

Plug the butterfly valve cam switch onto the outer square of the BV disc and align it with the notch.

Attach compact bracket SV04 with hexagon socket head cap screws to the pneumatic actuator with a torque of 3Nm.

Undo the screw connection and pull it out of the butterfly valve.

Push the pneumatic actuator with the mounted compact bracket over the butterfly valve ensuring proper engagement.
