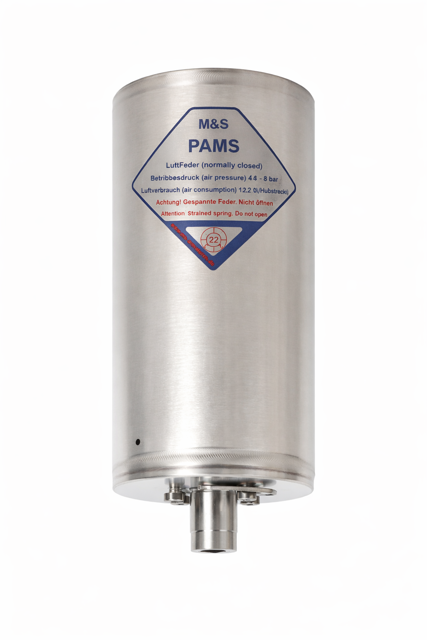

M&S Armaturen Pneumatic Actuator PAMS2 NC

Ensure the actuator is not modified.

Ensure the actuator is not opened.

Be cautious of the tensioned spring.

Use commercial cleaning agents to clean the pneumatic actuator.

Refer to assembly instructions for assembly/disassembly.

Ensure the butterfly valve is included in the potential equalisation.

Ensure the butterfly valve disc is in the correct position

Mount the actuator to avoid damage from transport vehicles

Observe relevant national guidelines and regulations

Plug the butterfly valve cam switch onto the outer square of the BV disc and align it with the notch

Attach compact bracket SV04 with hexagon socket head cap screws to the pneumatic actuator with a torque of 3Nm

Undo the screw connection and pull it out of the butterfly valve

Push the pneumatic actuator with the mounted compact bracket over the butterfly valve ensuring proper engagement

Ensure the butterfly valve disc is in the correct position

Mount the actuator to avoid damage from transport vehicles

Observe relevant national guidelines and regulations

Put butterfly valve switch cam (4.1) onto the drive shaft of the pneumatic actuator (1)

Attach bracket SVV04 (3.1) with hexagon socket head cap screws (5.1) to the pneumatic actuator (1) with a torque of 3Nm

Push the pneumatic actuator (1) with mounted bracket SV04 (3.1) and butterfly valve switch cam (4.1) over the butterfly valve (2.1) ensuring proper engagement

Put hexagon socket head cap screws (6.1) into the side holes of the bracket SV04 (3.1) and butterfly valve type SV04 (2.1)
