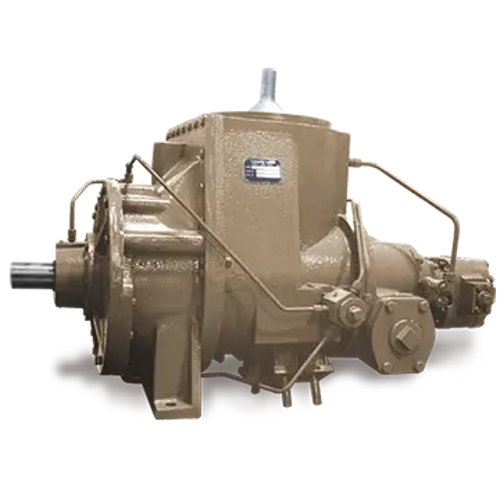

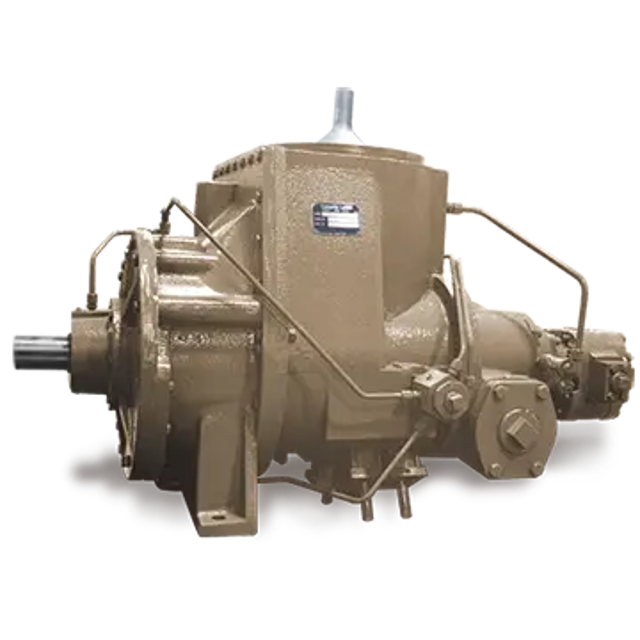

LeROI Gas Compressor HHG24227

Warning: This check requires trained personnel with PPE!

Enter the differential pressure gauge reading

Does the coalescing element need to be changed?

Enter any issues found during the check

Sign off on the coalescing element check

Make certain the unit cannot be started and that all the pressure has been removed from the system

Remove the service piping from the minimum pressure valve

Remove the valve from the receiver-oil reservoir cap

Securely clamp the valve in a vertical position (cap end up) in a suitable fixture (bench vise)

With a suitable wrench remove the valve cap from the valve body

Warning: Oil analysis should be performed by trained personnel only

Oil checked once a week for the first month

At least two samples analyzed in the first month

Oil analysis reduced to once a month after first month

Increase in water content monitored

Increase in metals content monitored

Oil samples analyzed by reputable supplier or manufacturer

Warning: This procedure requires trained personnel with PPE!

Enter the machine's hour meter reading

Enter the date of the last oil filter change

Was the filter changed with the last oil change?

Is the differential pressure for the oil filter maintained?

Is a differential gauge with an alarm installed?

Sign off on the oil filter replacement

Visual inspection for leaks, loose hardware, etc. performed?

Equipment serviced following the manufacturer’s instructions?

Water drained from the oil reservoir?

Correct type of oil added as required?

Oil pressure gages observed and readings compared (filter in-filter out)?

Gas pressure gauges observed and readings compared?

Surface dirt and dust removed from the oil cooler and after cooler?
