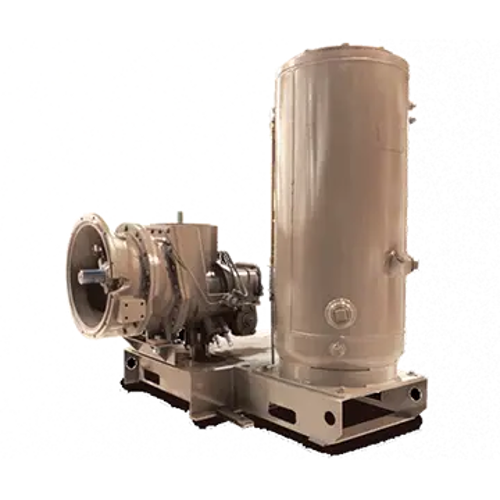

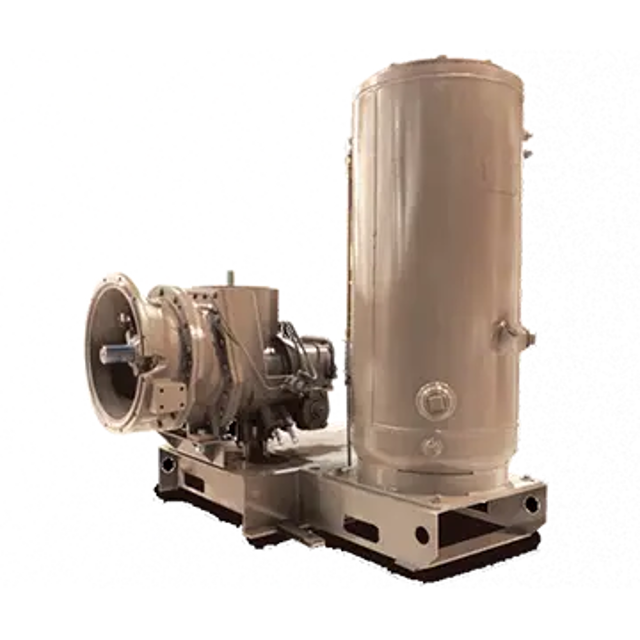

LeROI Gas Compressor HG17258VC

Make certain the unit cannot be started and that all the pressure has been removed from the system

Remove the service piping from the minimum pressure valve

Remove the valve from the receiver-oil reservoir cap

Securely clamp the valve in a vertical position (cap end up) in a suitable fixture (bench vise)

With a suitable wrench remove the valve cap from the valve body

Warning: Oil analysis should be performed by trained personnel only

Upload the oil sample analysis report

Unit cannot be started and system has all pressure removed

Coupling guards and/ or shields removed

Front of the compressor cleaned thoroughly to prevent dirt from entering the compressor

Visual inspection for leaks, loose hardware, etc. performed?

All equipment serviced following the manufacturer’s instructions?

Water drained from the oil reservoir?

Correct type of oil added as required?

Oil pressure gages observed and readings compared?

Gas pressure gauges observed and readings compared?

Surface dirt and dust removed from the oil cooler and after cooler?

Warning: This procedure requires trained personnel with PPE!

Enter the machine's hour meter reading

Enter the date of the last oil filter change

Was the filter changed with the last oil change?

Is the differential pressure for the oil filter maintained?

Is a differential gauge with an alarm installed?

Sign off on the oil filter replacement
