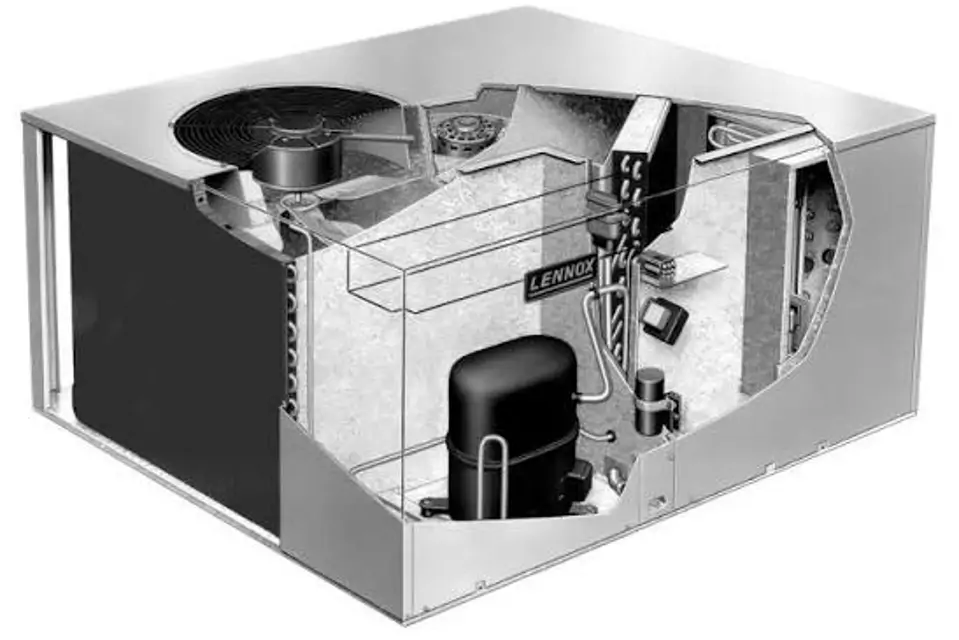

Lennox Air Conditioner CHP16-030

Clean the condenser coil with a water hose

Inspect condenser coil for cleanliness after cleaning

Inspect for evidence of oil leaks on

Owner complaints of insufficient cooling

Check all wiring for loose connections

Enter the voltage at the unit (unit operating)

Enter the amp-draw on the condenser fan motor

Enter the amp-draw on the blower motor

Check connecting lines and coil for oil leaks

Check condensate drain pan, if necessary

Check condensate drain line, if necessary

IMPORTANT: Always relubricate motors according to manufacturer’s lubrication instructions provided on each motor.

Are manufacturer's lubrication instructions available?

If no instructions are provided, use the following as a guide

Oil at oiling ports with a SAE 10W non detergent motor oil or suitable equivalent

Check the condition of the filters

Is the filter U.L.C certified or equivalent for use in Canada?

Clean the filter if it is dirty

Replace the filter if it is damaged

Ensure the 'AIR FLOW DIRECTION' marking is correctly aligned when re-installing the filter
