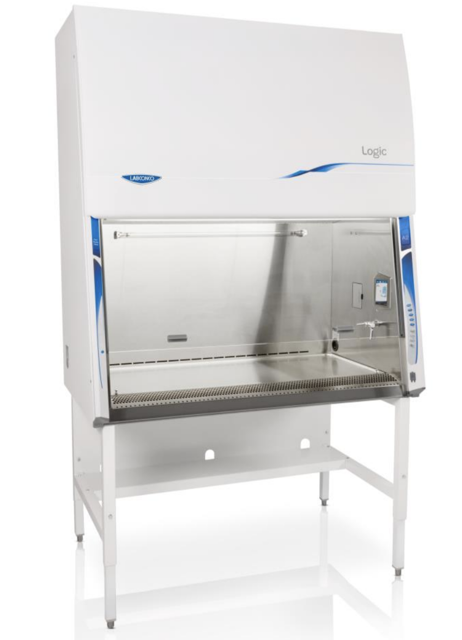

Labconco Biosafety Cabinets 30268xxx2

Clean sash glass with suitable glass cleaner

Clean UV lamp with suitable glass cleaner

Enter the Filter Life percentage from the cabinet blower

Ensure all electrical power is disconnected by removing the main electrical connection (power cord).

Confirm that only LED direct drive lighting will be used (no fluorescent bulbs).

Remove the dress panel as noted in Figure 8-4.

Locate and remove the Left End Cap by pulling it away from the lamp ends (Figure 8-6).

Remove both Socket Caps by pulling each straight off the right end of the lamp (Figure 8-7).

Pull each LED Lamp straight toward you to release it from the Spring Clips (Figure 8-7).

Note the rotational position of the old LED lamps for correct orientation of new lamps.

Perform the following tests as per NSF/ANSI Standard Number 49

Perform user comfort related tests if necessary

Was the cabinet recertified by a qualified technician?

Comments or observations from the certifier

Disinfect interior surfaces with suitable chemical disinfectant

Wipe down interior surfaces after contact time elapsed with 70% alcohol solution

Wipe down the interior surfaces of the cabinet with a suitable disinfectant or 70% ethanol and allow to dry

Periodically lift the work surface and wipe down the area beneath it

Inspect and clean the towel catch located at the rear of the work area, beneath the work surface

Dispose of rubber gloves appropriately

Confirm if the UV lamp is present in the model

Ensure compliance with local disposal laws for hazardous waste

Is the UV lamp hour meter indicating replacement is needed?

Start the cabinet blower and let it operate for 5 minutes.

Raise the sash to its full open position.

Thoroughly surface decontaminate the UV lamp and the work area of the cabinet.
