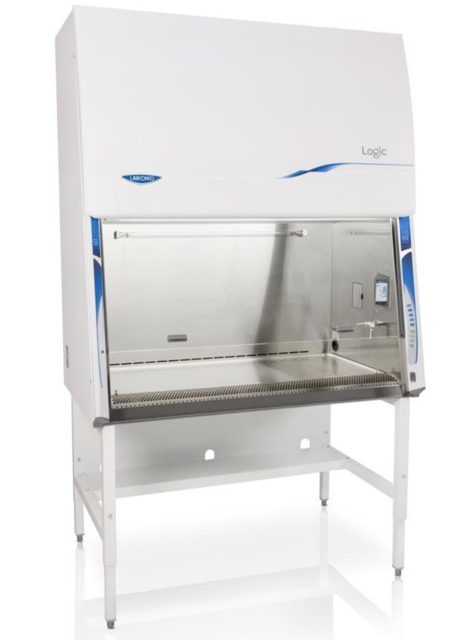

Labconco Procedure Station 31262xxx2

Identify Thrown Circuit Breaker

Check if the internal outlets have power when the Outlet icon is displayed on the Home Screen.

Check if the cabinet has power when the System Reset Switch is on.

Identify the thrown circuit breaker(s)

Locate the circuit breaker with the extended white barrel.

Push the extended white barrel back in to reset the circuit breaker.

Verify if the internal outlets have power after resetting.

Lift the front edge of the work surface by grasping the knob at either front corner

Is removal of the work surface necessary?

Reinstall the dished work surface by resting the bottom on the center support and pushing it back into the cabinet

Engage the tabs on the back corners of the work surface with the slots on the rear wall of the work area

Pull the work surface straight out, letting the rear edge rest on the center support underneath

Check if the UV lamp is present in the model

Dispose of the old UV lamp according to local disposal laws

Consult www.lamprecycle.org for safe handling, recycling, and disposal information

Check the UV lamp hour meter for replacement indication

Start the cabinet blower and let it operate for 5 minutes

Raise the sash to its full open position

Thoroughly surface decontaminate the UV lamp and the work area of the cabinet

Unplug the cabinet or turn off the System Reset Switch

Clean sash glass with suitable glass cleaner

Clean UV lamp with suitable glass cleaner

Enter the Filter Life percentage

Disinfect interior surfaces with suitable chemical disinfectant

Wipe down interior surfaces with 70% alcohol solution after contact time elapsed

Wipe down the interior surfaces of the cabinet with a suitable disinfectant or 70% ethanol and allow to dry

Periodically lift the work surface and wipe down the area beneath it

Inspect and clean the towel catch located at the rear of the work area, beneath the work surface

Dispose of rubber gloves appropriately
