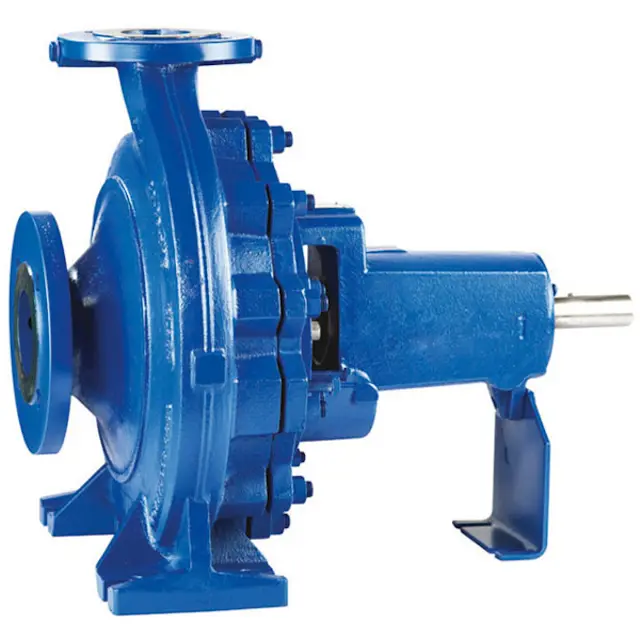

KSB SE & Co. KGaA Standardised Water Pump ETN 080-65-315

Observe and carry out notes and steps from Section 7.4.1 to Section 7.4.6

Place the bearing bracket in a clean and level assembly area

Undo the grub screw in the coupling hub

Pull the coupling hub off shaft 210 with a special puller

Remove pump-end bearing cover 360.01 and drive-end bearing cover 360.02

Remove hexagon head bolts 901.01 and 901.02 as well as gaskets 400.01 and 400.02

Press shaft 210 out of the shaft seat

Use connection 6B to drain the fluid handled

Flush the pump if it has been used for handling noxious, explosive, hot or other hazardous fluids

Flush and clean the pump before transporting it to the workshop

Provide a cleaning record for the pump

Wear appropriate safety clothing and protective gear

Collect and properly dispose of flushing fluid and any residues of the fluid handled

Observe all legal regulations on the disposal of fluids posing a health hazard

Check applicability of steps 1 and 2

Shift the motor to connect it to the pump via the coupling

Fasten the motor to the baseplate

Connect the motor to the power supply

Check if the clearances need to be checked

Remove the impeller if clearances need to be checked

Measure the clearance between impeller and casing

Measure the clearance between impeller and casing cover

Pump runs quietly and free from vibrations

Is the oil level correct for oil lubrication?

Shaft seal is in good condition

Static seals are free from leakage

Rolling element bearings are free from running noises

Auxiliary connections are functioning correctly

Start the stand-by pump to ensure readiness for operation
