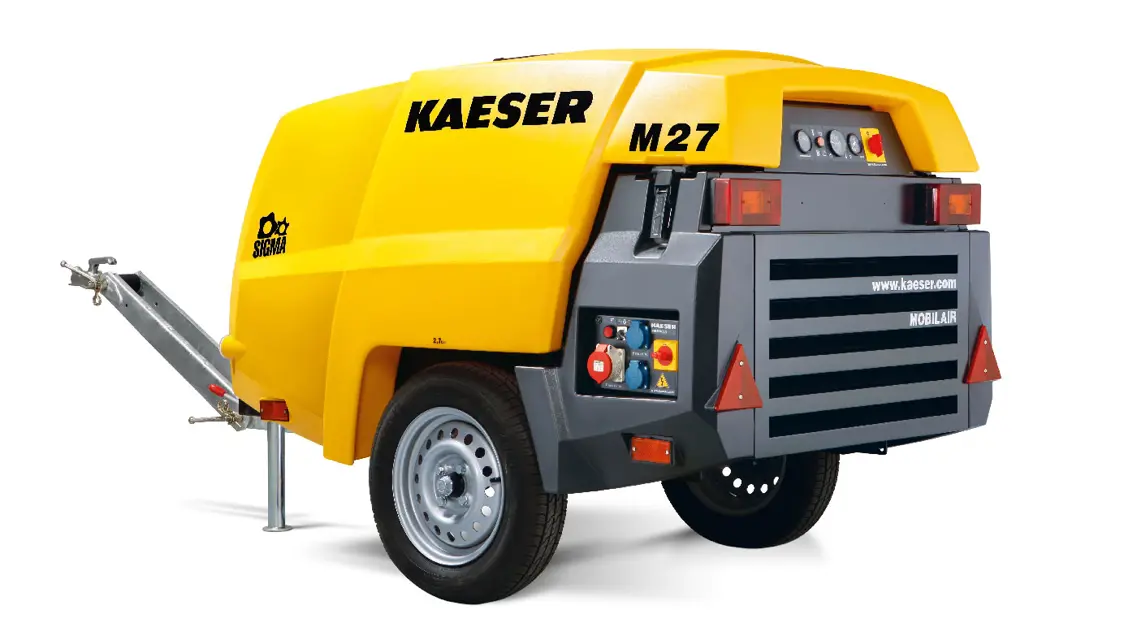

Kaeser Portable Compressors (Mobilair) M27

Check/adjust the drive belt tension with Tension Measuring Device

Check/adjust the drive belt tension Manually

Check coolant antifreeze concentration

Check the fuel tank for dirt and clean, if necessary

Check the fuel return line for leakage and firm seating

Check the battery electrolyte level and cable connections

Clean/inspect the dirt trap for the oil separator cartridge extraction line

Starting the Machine and Performing a Test Run

Authorized KAESER service representative contacted

Sign off on the generator bearings inspection

Unscrew the plug and remove the strainer

Detach the condensate drain hose from the dirt trap

Unscrew the nozzle from the dirt trap housing

Clean the nozzle, strainer, screw plug, O-ring, and dirt trap housing with cleaning solvent or spirit

Check the nozzle, strainer, and O-ring for wear

Place the strainer on the screw plug

Screw in the plug, making sure the O-ring seats properly

Screw in the nozzle and reattach the condensate drain hose

Check the level in the lubricant container

Is the oil level in the upper third of the dipstick?

Is the oil level below the required filling level?

Is the condensate collecting in the filter housings blown out?

Winter operation: Check the level of antifreeze in the defroster

Is the bowl ¾ full with antifreeze?

Is the water separator tank empty?

Check engine air filter maintenance indicator. Air filter maintenance is necessary when the yellow piston inside the maintenance indicator reaches the red zone.

Check the engine oil level. Pull out the oil dipstick, wipe it clean and reinsert it. Pull out the oil dipstick once more and read off the oil level.

Check the engine coolant level. The coolant level in the engine cooling circuit must be checked daily prior to start-up. The level is checked on the coolant expansion tank.

Check the level of coolant in the coolant expansion tank. Top off when the coolant level falls below the minimum check mark.

Check the compressor air filter maintenance indicator. Checking contamination of the air filter. Air filter maintenance is necessary when the yellow piston inside the maintenance indicator reaches the red zone.

Check the cooling oil level. The oil level is checked at the oil separator tank filling port. Oil should be visible in the port when the filler plug is removed.

Check the lighting system's function.

Sign off on the daily compressor maintenance
