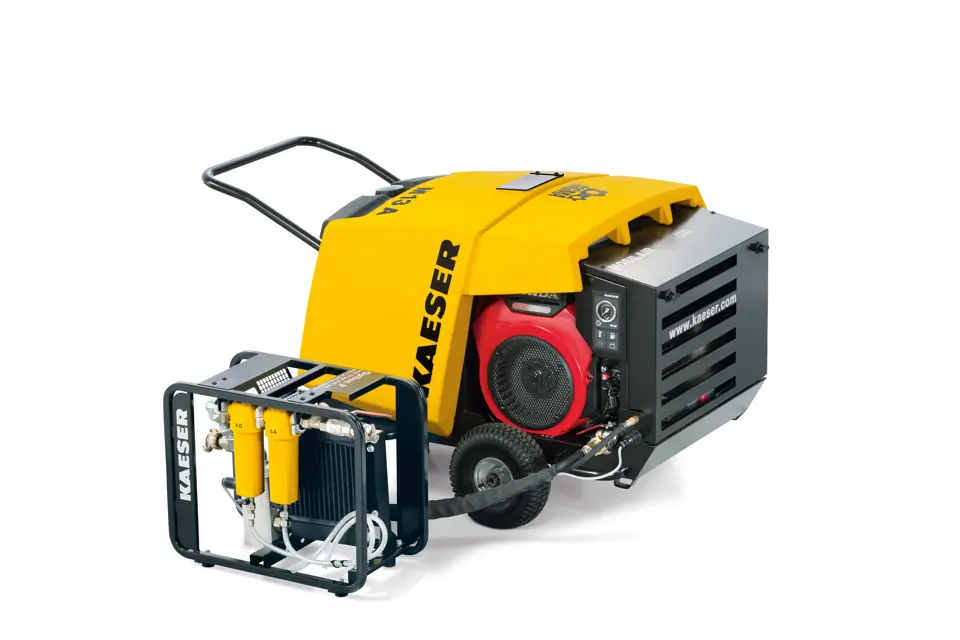

Kaeser Portable Compressors (Mobilair) M17

Battery fluid level up to the mark, 0.4 in above the plates

If battery casing is leaking fluid, replace the battery immediately

Enter the tire pressures of chasis

Pressure relief valve(s) checked by KAESER Service

Instructions for Draining and Refilling Cooling Oil

Remove the plug from the oil separator tank filling port

Position the receptacle below the separator tank drain plug

Unscrew the drain plug and allow the oil to drain into the receptacle

Fit a new gasket on the drain plug and screw it back in again

Place the receptacle beneath the oil cooler

Unscrew the drain plug and allow the cooling oil to drain into the receptacle

Fit a new gasket on the drain plug and screw it back in again

Receptacle placed below the drain hole

Engine oil changed according to manufacturer's handbook

Negative cable reconnected to the battery

Disposal of old oil and materials

Old oil and materials disposed according to environmental regulations

Renewing the foam filter element

Withdraw the foam element 2 from the housing 1

Clean all sealing faces with a damp cloth

Insert the new foam element 2 in the housing 1

Replace the filter cap 1 on the housing 5

Renewing the paper filter element

Check all accessible fittings, screw connections, pipes and clamps for wear and tightness

Check that all electrical connections are tight

Sign off on the compressor inspection
