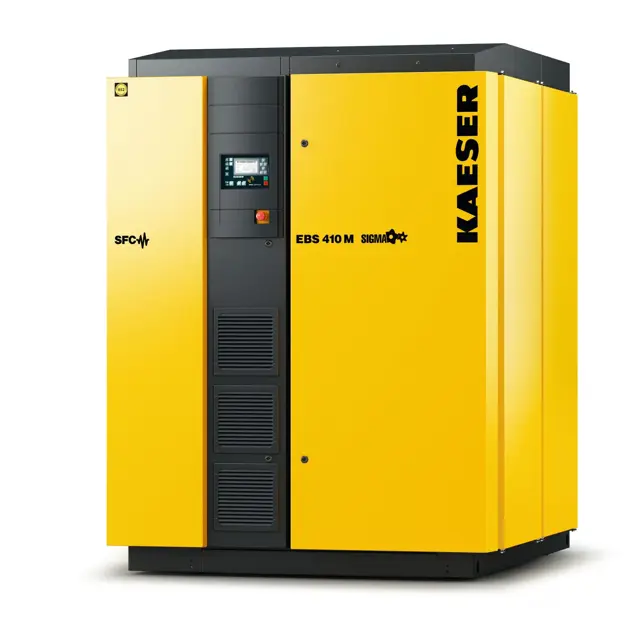

Kaeser Blower EBS 410

Control Cabinet: Visually checking the filter mat

Carefully remove the ventilation grille and take out the filter mat.

Change the filter mat if clogged or if the change interval has expired.

Insert the filter mat in the frame and latch in the ventilation grille.

Check the lubricating oil level

Check the lubricating oil level at the oil sight glass on the control and drive side.

Top off lubricating oil as soon as the lubricating oil level has dropped more than 0.08 inches below the middle of the oil sight glass.

Open the sound enclosure (Option H12)

Dismantle panels in order to clean the cooling air ducts of the drive motor

Dry brush the machine or blow off with compressed air

Close sound enclosure (Option H12)

Sign off on the machine cleaning

Warning: Only an authorized KAESER service representative should carry out service work.

Have service tasks carried out in a timely manner, taking the ambient and operating conditions into account.

Enter the current operating hours of the machine

Authorized KAESER service representative's signature

Warning: Never operate the machine without a correctly functioning safety relief valve!

Check for free movement of the tension rod by pulling vertically by the opening lever. The valve opens as soon as maximum working pressure is exceeded.

Check the safety relief valve. Do not adjust the safety relief valve. Immediately replace a defective safety relief valve.

Press the EMERGENCY STOP push button. The drive motor should come to a standstill, the machine's internal pressure system is vented and the machine is secured against automatically restarting.

If the drive motor does not come to a standstill, the safety function of the EMERGENCY STOP push button can no longer be assured. Shut down the machine immediately and contact an authorized KAESER service representative.

Unlock the EMERGENCY STOP push button by turning in the direction of the arrow. Acknowledge the alarm message.

Option C58 with external EMERGENCY STOP command device must be checked in the same way.

Check that all electrical connections are secure and tighten if necessary.

Sign off on the compressor maintenance

Warning: Only an authorized KAESER service representative should carry out service work.

Oil chamber ventilation: Check the solenoid valve and replace filter cartridge.

Option C11, unloaded start valve with solenoid valve: Check the solenoid valve.

Option C18, unloaded start valve with regulating valve: Check the solenoid valve.

Sign off on the compressor maintenance
