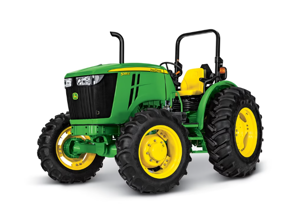

John Deere Tractor 5055E

Remove transmission-hydraulic filter element

Apply a film of oil to new gasket and install new filter

Run engine several seconds and recheck transmission-hydraulic oil level

Add transmission fluid if required

Run engine to heat oil for engine oil change

Remove oil drain plug and drain oil

Replace engine oil filter while changing oil

Apply a film of oil on the new oil filter gasket and install new filter

Check and drain water from water separator bowl

Drain water and sediment from fuel tank and fuel filter

Lubricate front axle pivot pin(s)

Change transmission-hydraulic oil and filter

Lower rockshaft to remove trapped oil

Remove drain plug (A) from transmission case and drain out oil

Remove drain plug (B) in drop housing

Replace filter (B) while changing oil

Fill system with transmission-hydraulic oil

Check oil level at dipstick (D)\\sight glass after filling, and again after operating for five minutes

Clean transmission-hydraulic pickup screen

Drain coolant from radiator and engine block

Remove thermostat cover and thermostat, and install cover (without thermostat)

Flush system with radiator cleaner

Remove thermostat cover and clean off the gasket material. Apply gasket sealant to new gasket and install thermostat and cover

Sign off on the maintenance procedure

Inspect and adjust alternator/fan belt

Check tension by pressing belt midway between pulleys. Belt should deflect about 19 mm (3/4 in) at 89 N (20 lbf).

Check clutch pedal free travel. Measure free play (A) at top of pedal stroke. Adjust linkage to obtain 20 mm to 25 mm free play and 0 mm for wet clutch variants.
