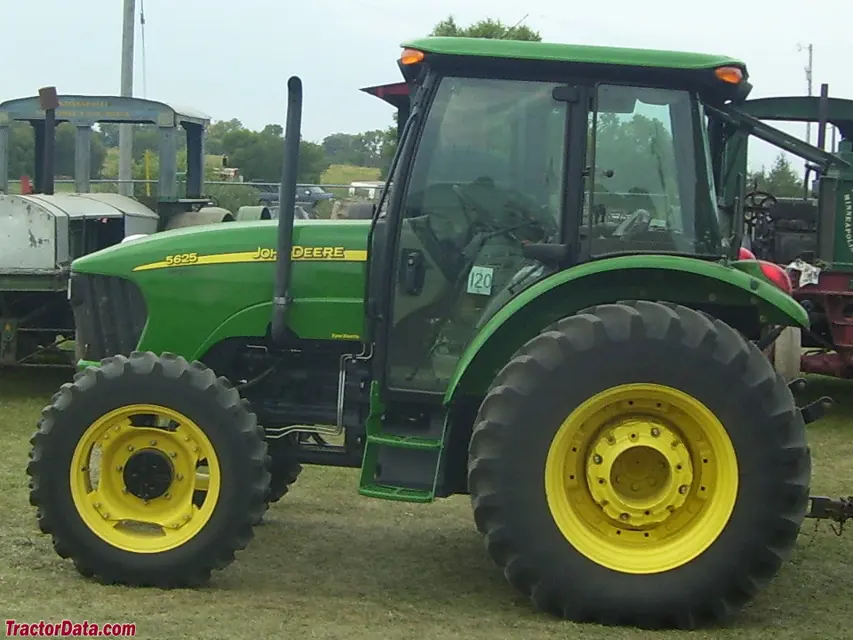

The John Deere Tractor 5625 is a robust agricultural machine designed for efficiency and reliability in farming operations. Known for its powerful engine and versatile capabilities, this tractor is ideal for various tasks, ensuring optimal performance in the field.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 5625

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 5625

Integrate maintenance plans directly into your work orders in MaintainX.

50 Hourly Maintenance

Check transmission-hydraulic system oil level

Is oil level between full mark and end of dipstick?

If oil level is low, add oil. Refer to Anti-Chatter Transmission-Hydraulic oil in Fuels, Lubricants and Coolant section.

Check clutch pedal free play

If clutch pedal free play is not correct, remove clip pin (C), loosen jam nut (B), rotate clevis (D) as necessary to obtain the specified free play, then tighten jam nut and install clevis and clip pin.

Check PTO lever travel

Inspect all tires and check inflation pressure

Lubricate front axle pivot pin

Lubricate steering king pins (MFWD)

Run this procedure

250 Hourly Maintenance

Change engine oil and filter

Inspect tractor for loose hardware

Change fuel filter

Check battery fluid level

Lubricate steering spindles (2WD)

Check planetary drive oil level (MFWD)

Check MFWD axle oil level

Clean MFWD axle breather

Check neutral start system

Run this procedure

100 Hourly Maintenance

Check coolant level

Check level in coolant tank (B)

If engine is cool and level is below 'LOW', add coolant to recovery tank to bring to 'LOW'

Check engine oil level

Check oil level on dipstick (A). Oil level should be between two marks on dipstick

If level is low, add oil through oil filler hole (B) until even with upper mark. DO NOT over fill

Fill fuel tank and add diesel conditioner

Drain water and sediment from fuel tank

Check water separator

Run this procedure

2000 Hourly / 2 Yearly Maintenance

Drain coolant from radiator and engine block

Tighten cap screws to 47 N.m (35 lb-ft)

Flush system with water

Flush system with Radiator Cleaner

Flush system with water again

Replace thermostat and tighten cap screws to 47 N.m (35 lb-ft)

Fill with fresh coolant

Re-check coolant level and add make-up coolant as needed

Sign off on the maintenance

Run this procedure

As required Maintenance

Adjust hand throttle friction

Remove key switch panel

Adjust spring tension by loosening or tightening lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag

Clean primary air filter element

Open hood (A)

Release three air cleaner cover retaining clips (B) and remove air cleaner cover (C)

Remove primary element (D)

Put primary element with the palm of your hand, NOT ON HARD SURFACE

If this does not remove dust, use compressed air under 207 kPa (2.1 bar) (30 psi). Direct air up and down the pleats, blowing from inside to outside. Be careful not to make a break in the element. Use element cleaning gun AR62377

Run this procedure
