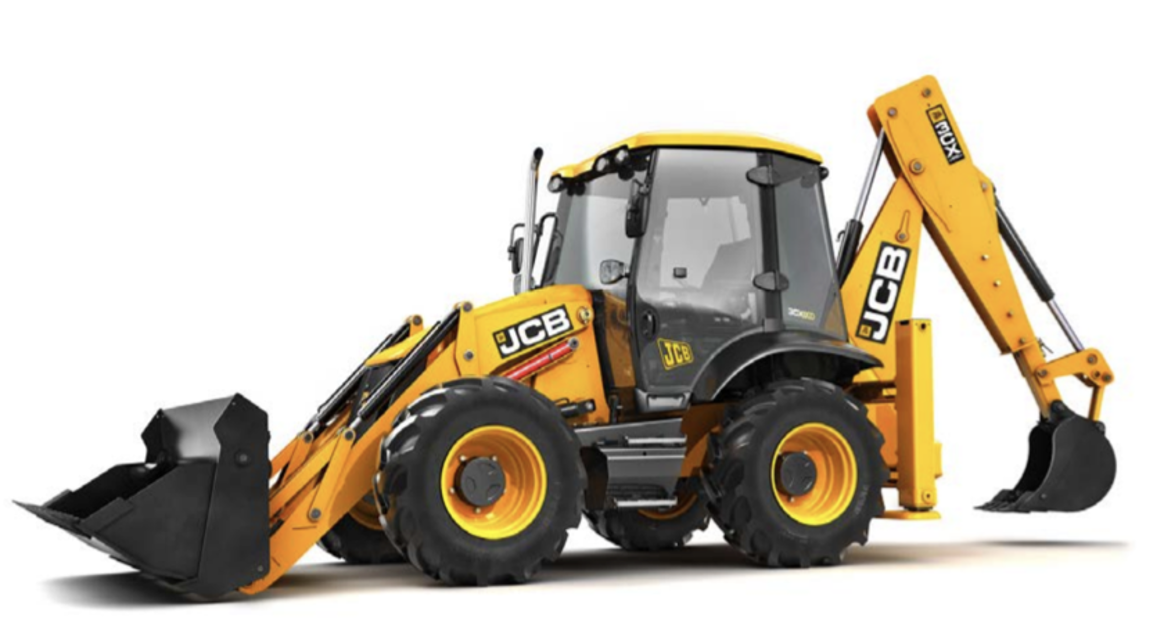

The JCB Backhoe Loader 3CX-4T C is a versatile and powerful piece of construction equipment, ideal for various applications. Known for its durability and efficiency, this backhoe loader combines advanced technology with robust design, making it a reliable choice for contractors and operators alike.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Backhoe Loader 3CX-4T C

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

JCB Backhoe Loader 3CX-4T C

Create an account to install this asset package.

Maintenance Plans for JCB Backhoe Loader Model 3CX-4T C

Integrate maintenance plans directly into your work orders in MaintainX.

100 Hours Loader Transmission Maintenance

Check Transmission Oil Level

Change Transmission Filter

Check Axle Oil Level (incl. Hubs when applicable)

Check Tyre Pressures/Condition

Check Front Hub Bearings

Security/Grease Drive Shafts

Check Steer Axle Movement/Shimming

Grease Steer Axle Pivots and Linkages

Grease Front Axle Main Pivot

Run this procedure

500 Hours / 6 Monthy Loader Transmission Maintenance

Check Transmission Oil Level

Change Transmission Filter

Check Axle Oil Level (incl. Hubs when applicable)

Change Axle Oil - Limited Slip Differential

Check Tyre Pressures/Condition

Check Front Hub Bearings

Security/Grease Drive Shafts

Check Steer Axle Movement/Shimming

Grease Steer Axle Pivots and Linkages

Run this procedure

3 Yearly Seat Belt Maintenance

WARNING! When a seat belt is fitted to your machine replace it with a new one if it is damaged, if the fabric is worn, or if the machine has been in an accident. Fit a new seat belt every three years

Inspect the seat belt for signs of fraying and stretching

Check that the stitching is not loose or damaged

Check that the buckle assembly is undamaged and works correctly

Check that the belt mounting bolts are undamaged, correctly fitted and tightened

Sign off on the seat belt maintenance

Run this procedure

1000 Hours / 1 Yeary Loader Transmission Maintenance

- Change Transmission Oil

- Change Transmission Filter

- Change Axle Oil (incl. Hubs when applicable)

- Change Axle Oil - Limited Slip Differential

- Check Tyre Pressures/Condition

- Check Front Hub Bearings

- Clean Transmission Strainer

- Security/Grease Drive Shafts

- Check Steer Axle Movement/Shimming

Run this procedure

Loader Cleaning

- Clean the machine

Park the machine on firm level ground, engage the parking brake and set the transmission to neutral. Lower the attachments to the ground and stop the engine

Clean the machine using water and/or steam. Do not allow mud, debris etc to build upon the machine, pay particular attention to the following areas:

1. Backhoe hoses passing through mainframe

2. Around twin slew rams

3. Twin ram slew recess in chassis (centremount)

4. Kingpost slide rails (sideshift)

5. Kingpost hose tray and bottom 'shelf' (sideshift)

6. Recess between slew ram and kingpost casting (sideshift)

Run this procedure
