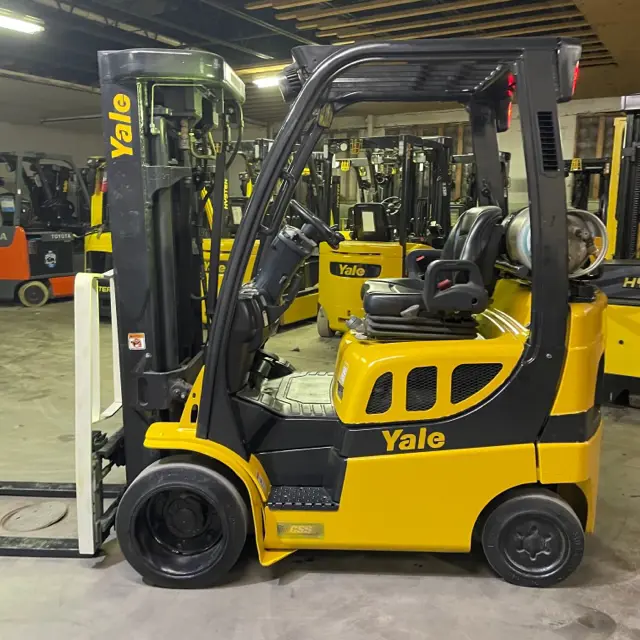

Hyster-Yale Hyster-Yale Lift Truck GLC050VXNVSE083 GLC050VXNVSE083

Slide seat to the closest position to steering column

Fully tilt steering column forward

If your truck is equipped with an LPG tank, swing tank off to the side

Raise latch on the left, front corner of hood to unlatch and lift up hood

Remove floor mat and floor plate

Remove two capscrews holding left and right rear side covers to the frame. Remove rear side covers from frame

Remove two capscrews holding left and right fender covers to front overhead guard leg. Remove covers

Remove four capscrews holding left and right front side covers to frame. Remove covers

Fully lower the steering column

- Clean metal parts in solvent. Remove all traces of old lubricant and dirt. Clean nonmetal parts with warm soapy water and a lint free cloth

- After cleaning, dry parts with compressed air. DO NOT dry parts with a cloth

- Inspect for loose, burned, missing, cracked or damaged hardware

- Inspect all parts for dents, holes, bends, burrs, rust, corrosion or marred finishes

- Replace all defective or damaged parts;
