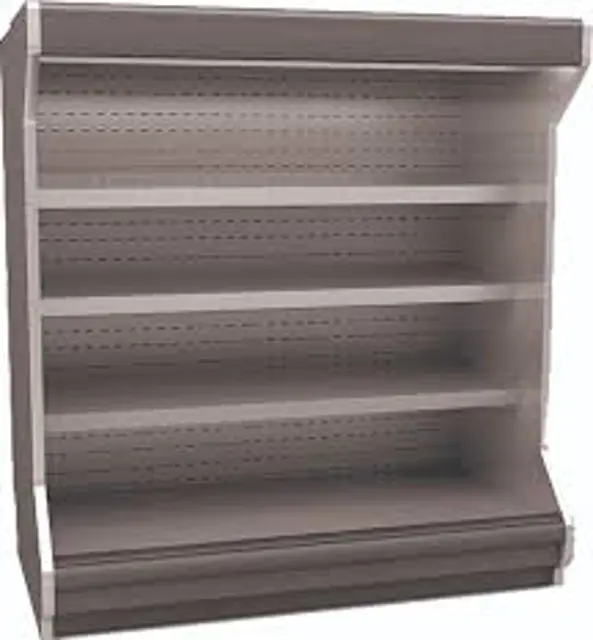

Hussmann Refrigerator D5-8L U

Door bumpers removed from tracks

Track wipe-outs used for cleaning

Soap and hot water used for cleaning

Brush used to remove accumulated debris

Sign off on the door track cleaning

Power to the merchandiser disconnected

Fluorescent lamps removed from the canopy

Screws securing the lamp panel removed

Lamp panel carefully pulled down

Parts reassembled in reverse order

Warning: Be careful not to damage the honeycombs during cleaning

Choose the cleaning method used

All water removed from the honeycomb cells before replacing?

Upload a photo of the cleaned honeycombs

Sign off on the honeycomb cleaning

Warning: Always replace lamp holders and end caps with Hussmann lamp holders and end caps

The Impact Excel lamp holder is designed to snap into the sheet metal of the case

The lamp holder has a locking ‘nub’ which fits inside the groove of specially designed end caps

Upload a photo of the replaced lamp holder and end cap

Sign off on the lamp holder and end cap replacement

Disconnect fan from wiring harness

Remove screws holding fan motor/bracket assembly to plenum and remove assembly

Replace fan motor/bracket assembly and reinstall screws

Reconnect fan to wiring harness
