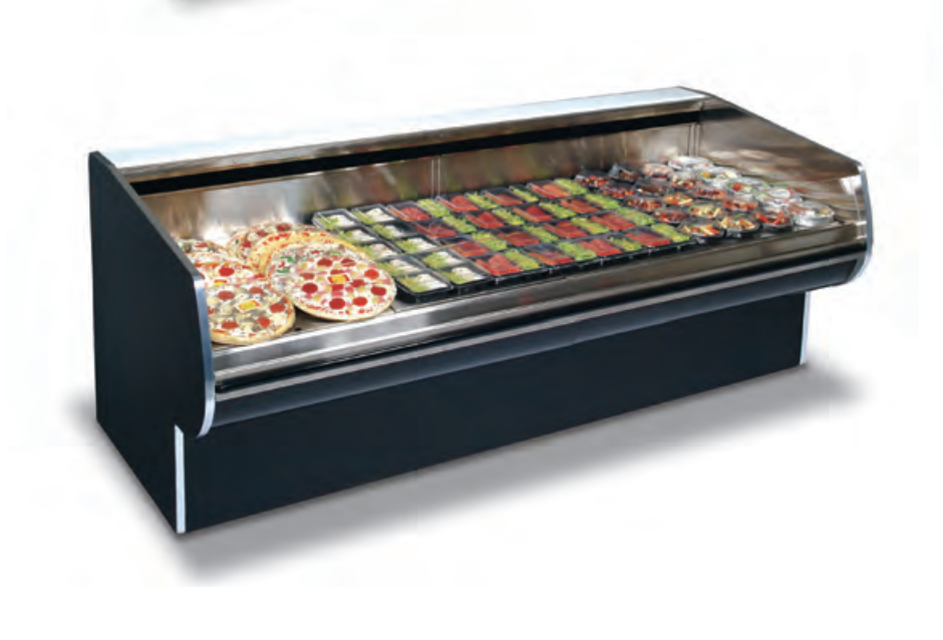

Hussmann Merchandiser E2S

Warning: Always use non-abrasive cleaning materials and polish with grain of the steel.

Used warm water or mild detergent for cleaning?

Used alkaline chlorinated or non-chlorine containing cleaners?

Warning: Do not use cleaners containing salts or bleach.

Cleaned frequently to avoid build-up of hard, stubborn stains?

Used a stainless steel cleaning solution periodically?

Rinsed and wiped dry immediately after cleaning?

Warning: Never use hydrochloric acid (muratic acid) on stainless steel.

Sign off on the stainless steel surfaces cleaning

Warning: This maintenance check requires trained personnel with PPE!

Inspect all lamp sockets and plug–receptacle connections for signs of arcing

All unused receptacles have their close-off covers securely installed

Proper cleaning procedures are followed

Lights and fans are turned off when a case is cleaned

Case is allowed to dry before turning power back on

Pressure nozzle is not used to clean inside a case

Number of degraded or failed tubes replaced

Cost of replacing degraded bulbs

• Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

• To facilitate cleaning, the fan plenum is hinged. After cleaning be sure the plenum is properly lowered into position or product loss will result due to improper refrigeration.

WARNING! PREVENT INJURY. ALWAYS SHUT OFF POWER DURING CLEANING PROCESS.

• The exterior surfaces must be cleaned with a mild detergent and warm water to protect and maintain their attractive finish. Never use abrasive cleansers or scouring pads.

• The interior surfaces may be cleaned with most domestic detergents, ammonia based cleaners and sanitizing solutions with no harm to the surface.

Warning: This procedure requires trained personnel with PPE!

Drilled out the bottom of the drain fitting completely?

Inserted coupling into drain fitting without applying PVC or ABS pipe sealer?

Installed a PVC adapter on the drip trap?

Applied primer-sealer to a stub piece of PVC pipe and inserted between coupling and adapter?

Sign off on the drain fitting replacement

The LED power supplies for canopy lights and shelf lights are located at the top of the merchandiser inside the canopy.

Disconnect power to the merchandiser

Remove light bars from the canopy

Remove the screws that secure the lamp panel

Grasp the lamp panel at its front edge and carefully pull down. It will swing freely from its hinged rear edge

Replace power supply and reassemble parts in reverse order

Sign off on the LED power supplies replacement
