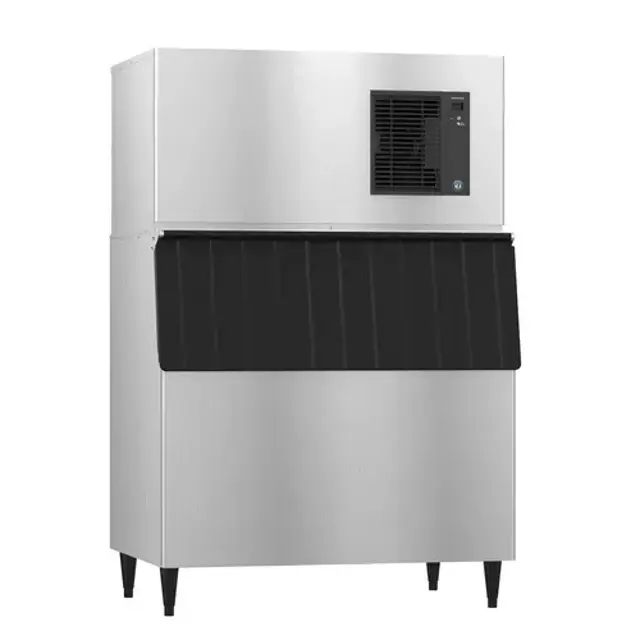

HOSHIZAKI Modular Cuber IM-500SAB

WARNING: Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the control switch with damp hands.

Move the control switch to the 'OFF' position and turn off the power supply before servicing. Lockout/Tagout to prevent the power supply from being turned back on Inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

External Water Filters: Check for proper pressure and change if necessary.

Icemaker Exterior: Wipe down with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up. Clean any chlorine staining (rust colored spots) using a non-abrasive cleanser.

Underside of Icemaker and Top Kits, Bin Door and Snout: Wipe down with a clean cloth and warm water.

Sign off on the monthly cuber maintenance

WARNING: Only qualified service technicians should service the appliance.

If the air filters are dirty, wash them with warm water and a neutral cleaner.

Sign off on the air filters maintenance

• Only qualified service technicians should service the appliance.

• To reduce the risk of electric shock, do not touch the control switch with damp hands.

• Move the control switch to the "OFF" position and turn off the power supply before servicing. Lockout/Tagout to prevent the power supply from being turned back on Inadvertently.

• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Icemaker and Ice Storage Bin: Clean and sanitize per the cleaning and sanitizing instructions provided in this manual. See "Ill.B. Cleaning and Sanitizing Instructions."

B. Cleaning and Sanitizing Instructions

The appliance must be cleaned and sanitized at least once a year. More frequent cleaning and sanitizing may be required in some water conditions.

• Only qualified service technicians should service the appliance.

• To reduce the risk of electric shock, do not touch the control switch with damp hands.

• Move the control switch to the "OFF" position and turn off the power supply before servicing. Lockout/Tagout to prevent the power supply from being turned back on Inadvertently.

• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Water Supply Inlet: Close the icemaker water supply line shut-off valve and drain the water system. Clean the water supply inlet screen.

Condenser: Inspect. Clean if necessary by using a brush or vacuum cleaner. More frequent cleaning may be required depending on location.

Water Hoses: Inspect the water hoses and clean/replace if necessary.;
