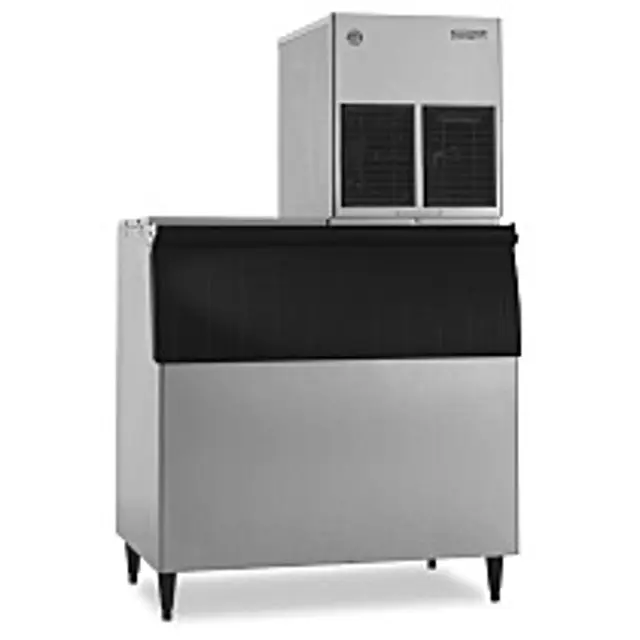

HOSHIZAKI Modular Flaker F-1001MRH

WARNING: Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the 'OFF' position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Icemaker power switch in the 'OFF' position

Disconnect (if applicable) in the off position

Lockout/Tagout to prevent the power supply from being turned back on inadvertently

All components, fasteners, and thumbscrews are securely in place

Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the 'OFF' position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

External Water Filters: Check for proper pressure and change if necessary.

Icemaker Exterior: Wipe down with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up. Clean any chlorine staining (rust colored spots) using a non-abrasive cleanser.

Infrared Sensor Lens; Underside of Icemaker and Top Kits; Bin Door and Snout: Wipe down with a clean cloth and warm water.

Sign off on the monthly modular flaker maintenance

Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the 'OFF' position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Inlet Water Valve and Drain Valve: Close the water supply line shut‑off valve and drain the water system. Clean the inlet water valve screen and clean and inspect the drain valve.

Water Hoses: Inspect the water hoses and clean/replace if necessary.

Condenser: Inspect. Clean if necessary by using a brush or vacuum cleaner.

Icemaker: Inspect for oil spots, loose components, fasteners, and wires.

• Only qualified service technicians should service the appliance.

• To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

• Before Servicing: Move the icemaker's power switch to the "OFF" position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Lower Bearing and O-Ring (lower housing)

Mechanical Seal; Evaporator Cylinder; Auger

WARNING: Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the 'OFF' position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

If the air filters are dirty, wash them with warm water and neutral cleaner.

Sign off on the air filters maintenance
