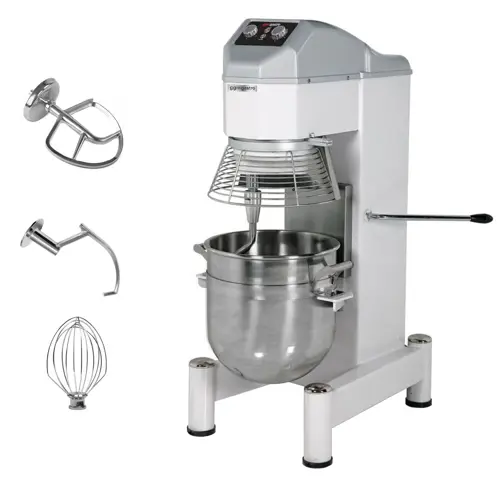

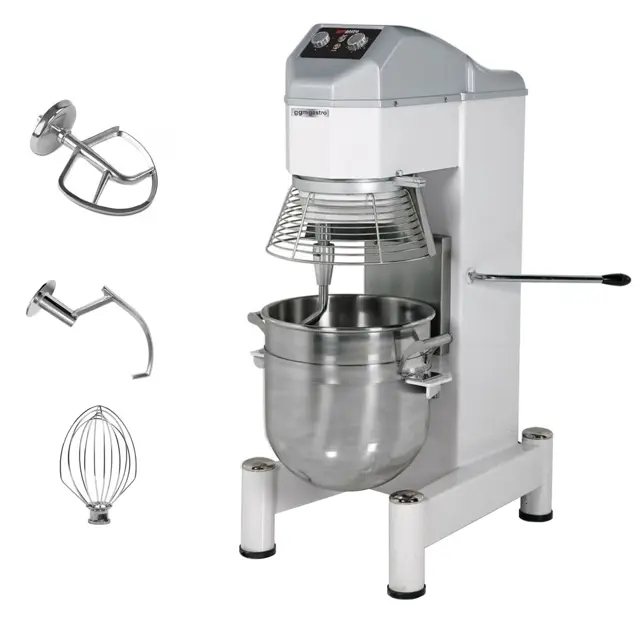

Hobart Mixer HSM30

Before using for the first time, thoroughly wash new mixer bowls, agitators and attachments.

Used a mild detergent solution?

This procedure should also be followed for bowls and agitators before whipping egg whites or whole eggs.

Sign off on the initial mixer cleaning

NOTE! Do not remove any covers or loosen any fittings while the mixer is operating.

NOTE! Ensure the electrical supply has been isolated before attempting to service or move the mixer.

The motor and transmission are packed with special grease, which will last for several years. When replacement is needed, contact your local service centre.

The bowl support guide rods lubricated with food grade grease

Sign off on the mixer lubrication

Warning: Ensure the mixer is turned off and unplugged before cleaning.

Clean the mixing bowl with hot water and non-abrasive detergent

Clean the agitators and attachments with hot water and non-abrasive detergent

Note: Do not clean the aluminium agitators in a dishwasher.

Clean the mixer with a hot damp cloth

Thoroughly wipe the bowl support arms and all exterior surfaces

Warning: Do not use aggressive chemicals to clean the sleeve since they may degrade the plastic material.

Remove the plastic sleeve from the stainless steel arm

Tapping the sleeve against the edge of a table will aid its removal.

Clean both parts in a sink with hot water and detergent solution

Slide the sleeve onto the arm so the bevelled edge is the leading edge

Use water as a lubricant. The end of the sleeve must be flush with the end of the arm.

Sign off on the bowl scraper cleaning

Is the bowl support in the lowered position?

Is the agitator and bowl removed?

Is the interlock plunger withdrawn and guard deflector assembly rotated in an anticlockwise direction?

Is the guard assembly carefully lowered and removed?

Is the guard cleaned at the end of each day?

Refitting Guard Assembly to the Machine
