Hobart Mixer HL800С

- Inspect the transmission belt yearly for wear and replace by a Hobart Service Technician if worn

1. To check the oil level, remove the top cover, which is secured by two screws

2. Remove the Transmission Fill Plug and check the oil level

3. If the oil level is below the line on the oil dipstick, add a small amount of the recommended transmission oil until it returns to the proper level

4. Do not overfill the transmission, as leakage may result. Contact your local Hobart Service Office for the recommended transmission oil;

WARNING! Disconnect the electrical power to the mixer and follow lockout / tagout procedures

Mixer and accessories cleaned with hot water and mild soap solution

Rinsed with either a mild soda or vinegar solution

Thoroughly rinsed with clear water

Mixer washed with a clean, damp cloth

Apron removed for cleaning by loosening the thumb screws

Drip cup-splash guard assembly removed periodically and wiped clean

1. Lower the bowl. Remove the agitator and bowl

2. While holding the wire cage securely with both hands, rotate it to your left until the front-center retainer shoe reaches the gap in the circular ridge of the planetary drip cup

3. Lower the front of the wire cage and move the wire cage slightly to the rear so the rear retainer shoes clear the ridge of the drip cup. The wire cage can now be removed

4. Wash the wire cage in a sink, rinse with clear water, and dry with a clean cloth

5. The stainless steel splash guard can be wiped off and/or washed with a cloth or sponge using warm, soapy water. Rinse with clear water and dry with a clean cloth

1. Position the ring of the wire cage so the front-center retainer shoe is positioned below the gap in the circular ridge of the planetary drip cup

2. Position the grooves so the rear retainer shoes straddle the circular ridge on the planetary drip cup

WARNING! To avoid risk of serious injury, keep hands, feet, clothing, and utensils away from the bowl, bowl support, slideways, and agitator when the mixer is in operation or when any of the components are moving

WARNING! This food mixer is only for professional use by properly trained persons

WARNING! Ensure operators have read and understood this manual and have received proper training

WARNING! Do not use the mixer without the interlocked wire cage in place

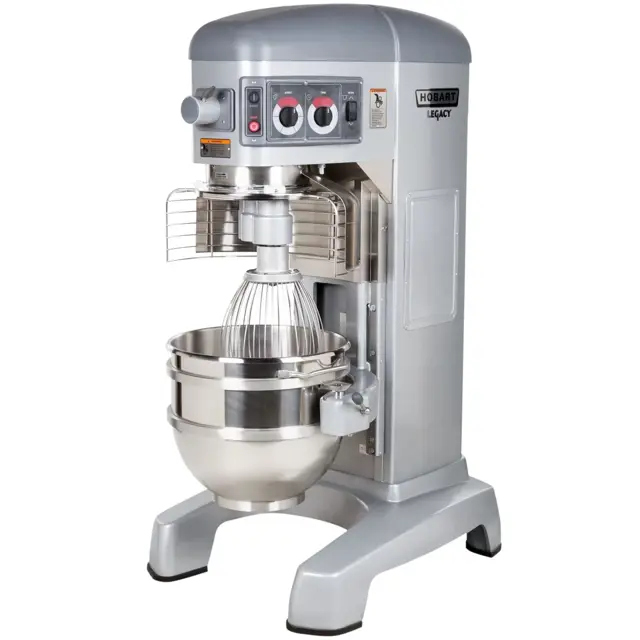

The Legacy+® mixer is equipped with SmartTimer™ controls and a power bowl lift. Other operating parts and their functions are described throughout the Operation section

- The wire cage must be in position or the mixer will not operate

- The bowl must stay in the locked position on the bowl support or the mixer will not operate

- If the bowl support is not all the way up (mix position), the mixer will not operate unless the START button is pressed and held

- Check agitator clearance periodically

1. The agitator must not touch the bowl, and the maximum clearance between the bottom of the bowl and an agitator is:

Agitator | Models | Max Clearance:

B Flat Beater | HL600, HL600C, HL800, HL800C, HL1400, HL1400C | 1/8" (3 mm)

ED Dough Arm | HL600, HL600C, HL800, HL800C | 5/16" (8 mm)

ED Dough Arm | HL1400, HL1400C | 11/16" (17 mm)

2. Install a bowl and agitator (e.g., beater). If the bowl and beater come into contact before the bowl support reaches its stop, adjust the stop screw. Refer to the Adjust the Bowl/Agitator Clearance section

Pour enough flour in the bowl to cover the bottom of the bowl where the beater travels. With the bowl fully raised (beater should not touch the bottom of the bowl), briefly run the mixer at the lowest speed
