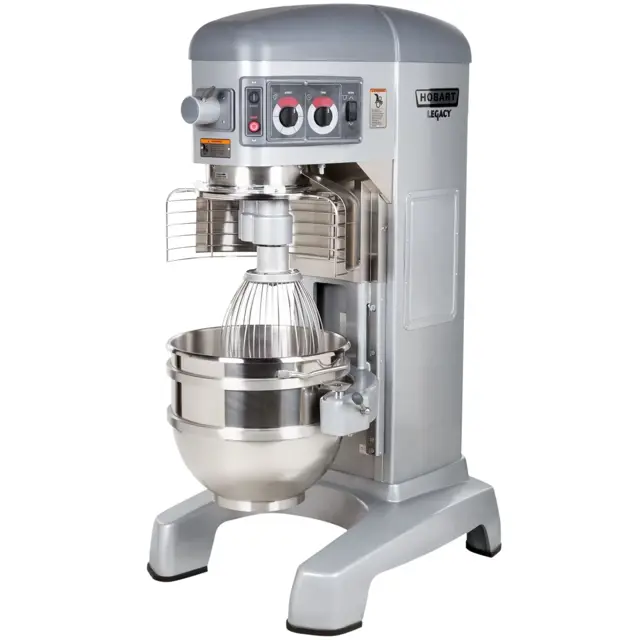

Hobart Mixer HL1400C

WARNING! To avoid risk of serious injury, keep hands, feet, clothing, and utensils away from the bowl, bowl support, slideways, and agitator when the mixer is in operation or when any of the components are moving

WARNING! This food mixer is only for professional use by properly trained persons

WARNING! Ensure operators have read and understood this manual and have received proper training

WARNING! Do not use the mixer without the interlocked wire cage in place

The Legacy+® mixer is equipped with SmartTimer™ controls and a power bowl lift. Other operating parts and their functions are described throughout the Operation section

- The wire cage must be in position or the mixer will not operate

- The bowl must stay in the locked position on the bowl support or the mixer will not operate

- If the bowl support is not all the way up (mix position), the mixer will not operate unless the START button is pressed and held

Warning: Disconnect the electrical power to the mixer and follow lockout / tagout procedures

Warning: Do not remove any covers or loosen any fittings while the mixer is operating

Ensure the electrical supply has been isolated before attempting to service or move the mixer

Warning: The electronic drive control is fitted with high voltage capacitors. Isolate the mixer from the mains and allow the capacitors to discharge for 5 minutes before removing any covers

Warning: Only Hobart trained service personnel or other properly trained and qualified personnel should carry out service

Inspection of the mixer's safety system

Operation check of the wire cage and bowl support interlock switches

Sign off on the safety system maintenance

Select the agitator model series

Enter the maximum clearance in mm

Does the bowl and beater come into contact before the bowl support reaches its stop?

Adjust the Bowl/Agitator Clearance

Did you tighten the locking nut while holding the stop screw?

WARNING! Disconnect the electrical power to the mixer and follow lockout / tagout procedures

New mixer bowls and accessories (beaters, whips, and dough arms) should be thoroughly washed with hot water and a mild soap solution, rinsed with either a mild soda or vinegar solution and thoroughly rinsed with clear water before being used. This cleaning procedure should also be followed for bowls and agitators before whipping egg whites or whole eggs

The mixer should be thoroughly cleaned daily. DO NOT use a hose to clean the mixer; it should be washed with a clean, damp cloth. The base allows ample room for cleaning under the mixer. The apron may be removed for cleaning by loosening the thumb screws. DO NOT wipe down slideways when cleaning

The drip cup-splash guard assembly should be removed periodically and wiped clean

For cleaning the wire cage refer to the Wire Cage section

Sign off on the daily mixer cleaning

1. Lower the bowl. Remove the agitator and bowl

2. While holding the wire cage securely with both hands, rotate it to your left until the front-center retainer shoe reaches the gap in the circular ridge of the planetary drip cup

3. Lower the front of the wire cage and move the wire cage slightly to the rear so the rear retainer shoes clear the ridge of the drip cup. The wire cage can now be removed

4. Wash the wire cage in a sink, rinse with clear water, and dry with a clean cloth

5. The stainless steel splash guard can be wiped off and/or washed with a cloth or sponge using warm, soapy water. Rinse with clear water and dry with a clean cloth

1. Position the ring of the wire cage so the front-center retainer shoe is positioned below the gap in the circular ridge of the planetary drip cup

2. Position the grooves so the rear retainer shoes straddle the circular ridge on the planetary drip cup
