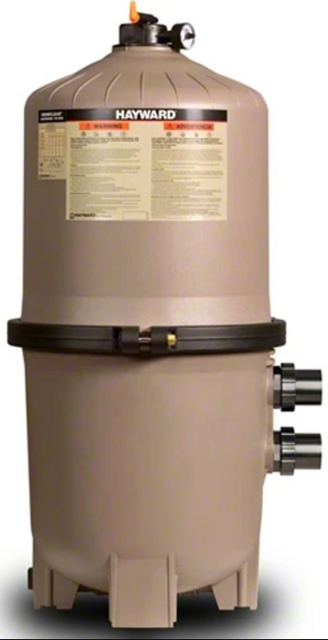

Hayward SwimClear™ Cartridge Filter C4030

Create an account to install this asset package.

Maintenance Plans for Hayward SwimClear™ Cartridge Filter Model C4030

Integrate maintenance plans directly into your work orders in MaintainX.

Filter Maintenance

WARNING: This product should be installed and serviced only by a qualified pool professional.

Turn off all system circulation pumps and all electric power on the equipment pad.

Set all system valves in a position to prevent water flow to the filter.

The manual air relief valve must be placed in the OPEN position.

Remove filter drain plug and drain water from filter.

Using 3/4” wrenches or hex sockets, loosen and remove the clamp nut and the clamp bolt.

Holding both ends of the filter clamp carefully spread the clamp ends.

Remove the clamp by lifting over the upper filter body. Do not to drop the clamp during removal, because the clamp could be damaged. Do not strike the clamp with metal tools as they can damage the clamp.

Lift off upper filter body. Do not use the pressure gauge to lift the upper filter body.

Run this procedure

Seal Ring / Seal Surface Cleaning

Warning: Do not use any petroleum solvents to clean filter components.

Filter tank seal removed

Upload a photo of the lower filter body seal surface after cleaning

Lower filter body seal surface and seal cleaned without solvent

Upload a photo of the upper filter body seal surface after cleaning

Upper filter body seal surface cleaned

Notice: Do not lubricate DEX2422Z2 seal.

Sign off on the seal ring / seal surface cleaning

Run this procedure

Cartridge Removal

Remove the top Manifold, which is exposed when the upper filter body is removed. (Fig 4)

Remove the filter cartridge elements by using slight rocking motion and lifting up.

Clean filter cartridge elements.

Run this procedure

Manual Air Relief Valve Removal

WARNING: This product should be installed and serviced only by a qualified pool professional.

Turn off all system circulation pumps and all electric power on the equipment pad.

Set all system valves in a position to prevent water from flowing to the filter.

The manual air relief valve must be placed in the OPEN position.

Wait until all water leakage has stopped.

Grasp the MAR body at the flats, turn the MAR counterclockwise until the indicator on the on the MAR flange is aligned with the “UNLOCK” position on the upper filter body.

Pull straight up to remove the MAR, a slight rocking motion may help.

Sign off on the Manual Air Relief Valve Removal

Run this procedure
