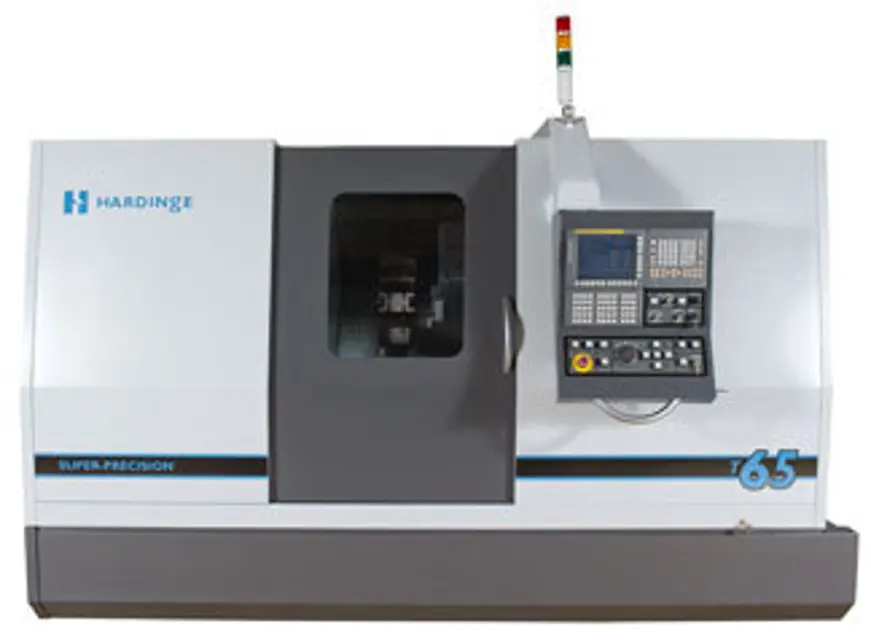

The Hardinge Lathe T-65L is a high-precision industrial lathe designed for versatile machining applications. Known for its robust construction and reliability, this model excels in producing intricate parts with exceptional accuracy, making it a preferred choice for manufacturers seeking efficiency and quality in their operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Hardinge Lathe T-65L

Create an account to install this asset package.

Maintenance Plans for Hardinge Lathe Model T-65L

Integrate maintenance plans directly into your work orders in MaintainX.

Main Spindle Coolant Catcher Cleaning

Release the two latches and remove access cover

Wipe out any coolant and chips

Wash the coolant catcher with a cleaner recommended by the coolant manufacturer

Install the access cover

Sign off on the cleaning procedure

Run this procedure

Coolant Tank Cleaning

Verify the machine is powered down

Wait a sufficient amount of time to allow the coolant to drain into the tank

At the right end of the machine, remove access cover

Release the locking handles and disconnect coolant hose coupling

If the coolant tank is equipped with a coolant level sensor, disconnect cable from the receptacle on the coolant tank

Release coolant tank clamp

Release two latches and remove left end skirt

Release coolant tank clamp

Move the tank from under the machine

Run this procedure

Spindle Cleaning

Access cover removed from the left end of the machine

Plug(s) removed from the end of the spindle draw tube(s) if present

Six draw tube screws completely loosened

Draw tube nut rotated counterclockwise to disengage the draw tube from the work-holding device

Work-holding device(s) removed from the spindle(s)

Sub-spindle covered to protect it from chips while the main spindle is being cleaned if the machine is equipped with the optional sub-spindle

Main coolant guard door closed

Chips and coolant blown out of the main spindle using an air line from the left end of the machine

Main spindle covered to protect it from chips while the sub-spindle is being cleaned if the machine is equipped with the optional sub-spindle

Run this procedure

Air Filter Bowl Cleaning

Power down the machine

Turn the air supply to the machine OFF

Lift the filter bowl sleeve and turn it counterclockwise about one eighth of a turn to release it from the filter head. Do not use excessive force to remove a filter bowl

Pour out contaminants that are present in the filter bowls

Wipe the bowls clean with a lint-free cloth and change the filter if necessary

Mount the bowl by aligning the bowl and sleeve on the head and turning it clockwise about one eighth of a turn to tighten it in place. Pull down on the sleeve to confirm that the bowl is in place

Grasp the sleeve and pull down to verify that the bowl is secure

Turn the air supply to the machine ON

Power up the machine

Run this procedure

Coolant Filter Cleaning

Verify the machine is powered down

Open rear access doors

Wipe filter head and filter housing, clean with a lint-free cloth

Remove the nut on the top of the filter unit to release the filter housing from the filter head

Remove the filter element from the filter body

Allow the coolant in the filter element to drain into the filter housing

Properly dispose of the coolant in the filter housing
