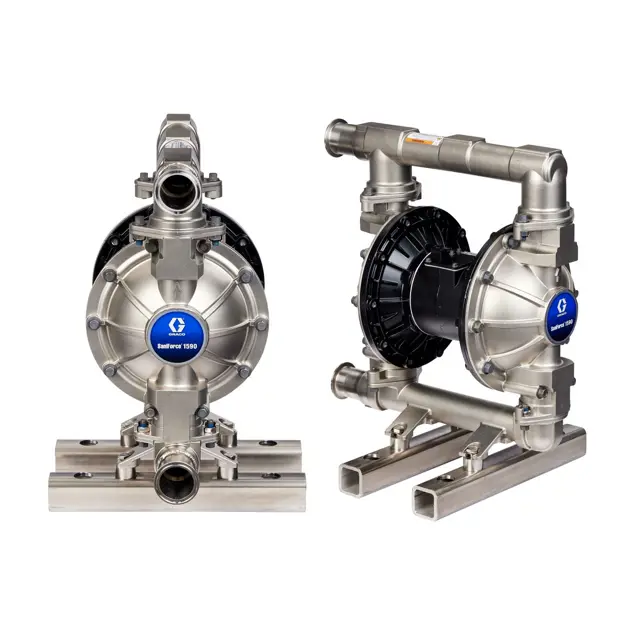

Graco Diaphragm Pump FD1111

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not limited to: • Protective eyewear, and hearing protection

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer

Before each use, check all hoses for wear or damage, and replace as necessary. Check to be sure all connections are tight and leak-free

Preventive Maintenance Schedule

Establish a preventive maintenance schedule, based on the pump’s service history. This is especially important for prevention of spills or leakage due to diaphragm failure;

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not limited to: • Protective eyewear, and hearing protection

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer

Insert suction tube into cleaning solution. Open air regulator to supply low pressure air to the pump. Run the pump long enough to thoroughly clean the pump and hoses. Close the air regulator. Remove the suction tube from the cleaning solution and drain pump. Place suction tube in the fluid to be pumped

Flush the pump often enough to prevent the fluid you are pumping from drying or freezing in the pump and damaging it. Flushing schedule will be based on what the pump is being used for. Use a compatible cleaning solution and always cycle the pump during the entire flushing process

Always flush the pump and relieve the pressure before storing it for any length of time;

Do not over-lubricate the pump. Oil is exhausted through the muffler and could contaminate your fluid supply or other equipment. Excessive lubrication can also cause the pump to malfunction.

Did you remove the hose from the pump air inlet?

Add two drops of machine oil to the air inlet.

Sign off on the air valve lubrication
