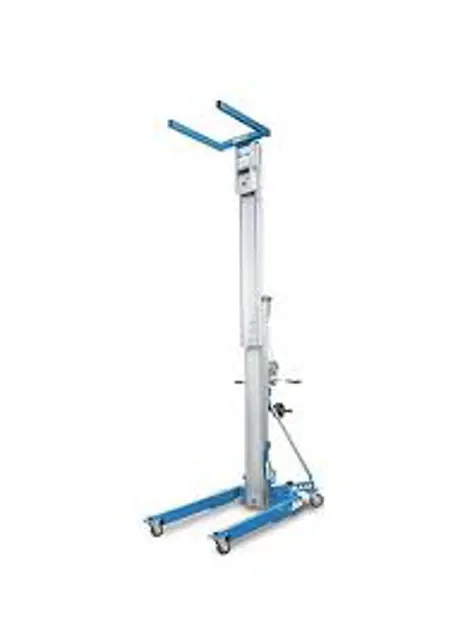

Genie Lift SLA-20

Operator's and safety manuals are present and complete in the storage container on the platform.

Pages of each manual are legible and in good condition.

The operator's manual is appropriate for the machine and all manuals are legible and in good condition.

The machine is equipped with all required decals, and all decals are legible and in good condition.

Perform Pre-operation Inspection

Pre-operation Inspection is completed.

Genie specitications require that this procedure be serformed every 250 hours or quarterly, whichever comes first.

Weld inspections are essential to safe machine operation and good machine performance.; Failure to locate and repair damage may result in an unsafe operating condition.

1 Visually inspect the welds in the following locations:

- Inspect the Mast Assembly for Wear

Genie specifications require that this procedure be performed every 1000 hours or annually, whichever comes first.

Detection of excessive or unusual wear in the mast assembly is essential for safe machine operation.

An unsafe working condition exists if the mast assembly has excessive wear and/or does not operate smoothly, free of hesitation and binding.

1 Attach a lifting strap from an overhead crane or similar lifting device to the lifting point on the top of the mast.; Rotate the carriage hold-down bar over the carriage and operate the winch to apply tension to the lifting cable.

2 Lift the machine slightly with the overhead crane and guide it onto a suitable structure capable of supporting it.

WARNING; Crushing hazard. The machine will fall if not properly supported by the overhead crane.

3 Lower the top of the mast onto the suitable structure.

4 Attach a lifting strap from an overhead crane to the base of the machine.
