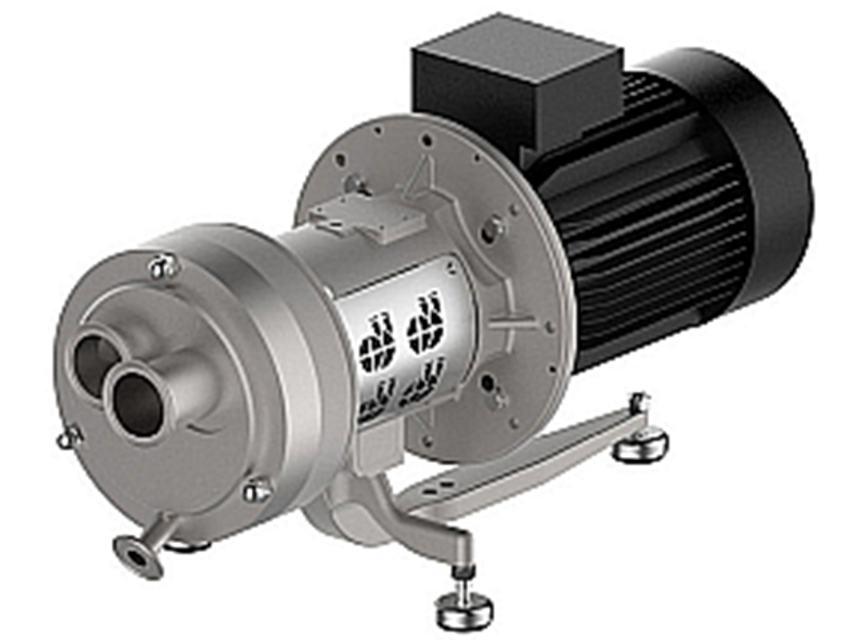

GEA Hygienic Pump Hilge SIPLA HT ADAPTA 52.1

Warning: This procedure requires trained personnel with PPE!

Enter the machine's operating hours

If operating hours are less than 1500, stop the procedure

If V-rings are damaged, replace them

Upload a photo of the greased V-rings

Sign off on the V-rings greasing

Motors without grease nipple are equipped with lifetime lubrication.

The grease life then depends on the bearing life.

Prerequisite is that the motor must be used according to the specifications in the catalogue.

On motors with grease nipple, the specifications for relubrication, type of grease, grease quantity, and other information as applicable are given on the lubrication or type plate.;

Functional testing of the mechanical seal

Inspect the pump and check whether liquid exits at the mechanical seal

An intact mechanical seal operates virtually without any leakage

If pumped fluid or flushing fluid exits

Follow the installation instructions Section 10.2, Page 44

Warning: This cleaning procedure requires trained personnel with PPE!

Cleaning is carried out inside the system no parts need to be removed or dismantled.

In general, a distinction is made between CIP and SIP. The procedures must comply with the state of the art and the EC directives.

Use only suitable cleaning agents.

Observe the safety instructions in the product descriptions of the cleaning agents.

Use always suitable personal protective equipment when handling cleaning agents.

Be sure to avoid exceeding the permissible concentrations of cleaning agents.

Reducing acids should not be used, because they cause pitting.

Warning: This inspection requires trained personnel with PPE!

If pump is not functioning correctly, report the issues to the maintenance team and stop the procedure

Mechanical seal and O-rings checked?

Mechanical seal and O-rings need replacement?

If seals need replacement, replace them and report to the maintenance team

Sign off on the pump inspection
