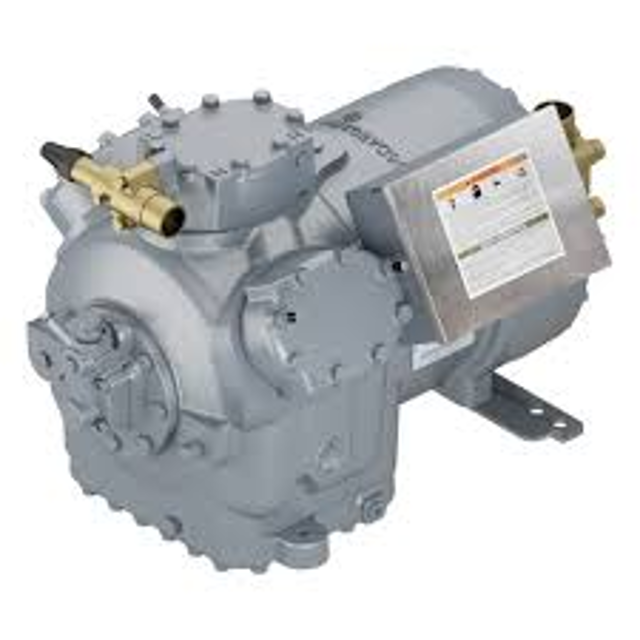

Carlyle Compressor Reciprocating Compressor 06DR3160

If oil stays clean and acid-free, the system is clean. If oil shows signs of contamination, follow the next steps.

If filter-drier or suction strainer is dirty or discolored, repeat steps 4-6 until system is cleaned.

Sign off on the daily compressor maintenance

Warning: This inspection requires trained personnel with PPE!

After 2 to 4 hours of operation, inspect compressor oil for discoloration and/or acidity.

Does the oil show signs of contamination?

If oil shows signs of contamination, replace oil and filter-driers and clean the suction strainer.

NOTE: When testing for moisture and acidity, be sure the test kit used is appropriate for the refrigerant (CFC, HCFC, or HFC) and the oil (mineral, alkylbenzene, or POE) in the system.

Select the type of refrigerant used

Carrier’s Total Test Kit is accurate for CFC and HCFC air-conditioning applications. If used with POE oils, Total Test Kit will indicate acid, but is not an accurate indicator of moisture.

Sign off on the initial 2 hours motor inspection

Warning: This maintenance check requires trained personnel with PPE!

Oil pressure tap located in the bearing head assembly?

Oil pump assembly contained in the pump end bearing head aluminum casting?

Pump end main bearing is a machined part of the casting?

To disassemble, first remove four (4) cap screws from the bearing head cover plate and remove the oil feed guide vane and spring.

Two (2) drive segment cap screws removed from the end of the crankshaft?

Eight (8) cap screws holding the bearing head assembly to the crankcase removed?

Bearing head assembly removed by pulling forward?

Bearing surfaces inspected for evidence of wear or damage?

Warning: This procedure requires trained personnel with PPE!

Enter the part number for replacement

Select the type of refrigeration application

Was the replacement successful?

Sign off on the replacement procedure

Warning: This procedure is for trained personnel only

If no, skip the procedure as metal core gaskets do not require re-torque

Did the gear cap screws lose hold-down torque?

Enter the current torque of the gear cap screws

Sign off on the gear cap screws maintenance
