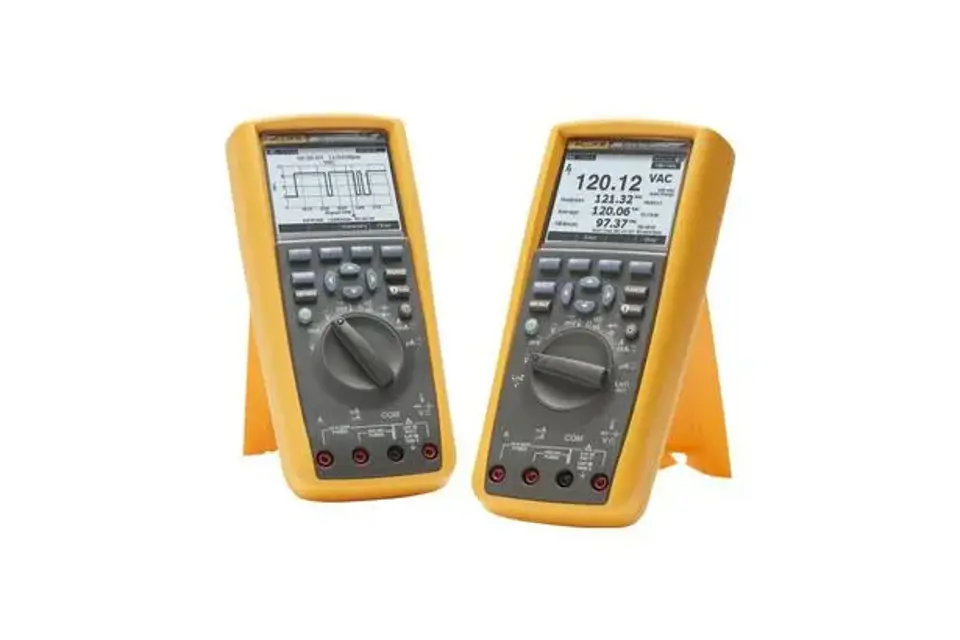

Fluke Digital Multimeter 287

Remove test leads and any input signals before opening the case or replacing the battery or fuses.

Install only specified batteries or fuses for this product.

Place the uncovered Meter assembly on a protective surface to avoid unintended circuit shorting.

Disconnect test leads from any live source.

Turn the Meter off and remove the test leads from the input terminals.

Use a flat-blade screwdriver to turn the battery door fastener counterclockwise to unlock position.

Lift up on the bottom of the battery pack and slide down to remove.

Wipe the case with a damp cloth and mild detergent

Ensure no abrasives, isopropyl alcohol, or solvents are used

Ensure no water is allowed inside the case to avoid electrical shock or damage

Ensure no solvents are applied to the Meter to avoid damaging the housing

Turn the Meter off and remove all test leads

Shake out any dirt from the terminals

Remove test leads and any input signals before replacing the battery or fuses

Install only specified fuses and batteries

Turn the meter off and remove test leads from the input terminals

Remove the battery door using a standard-blade screwdriver

Remove the fuse by gently prying one end loose and lifting it out

Install Fluke specified replacement fuses

Replace the battery door and secure it

Remove test leads from the input terminals

Use a standard-blade screwdriver to unlock the battery door

Replace the batteries, observing proper polarity

Secure the battery door by locking the fastener
