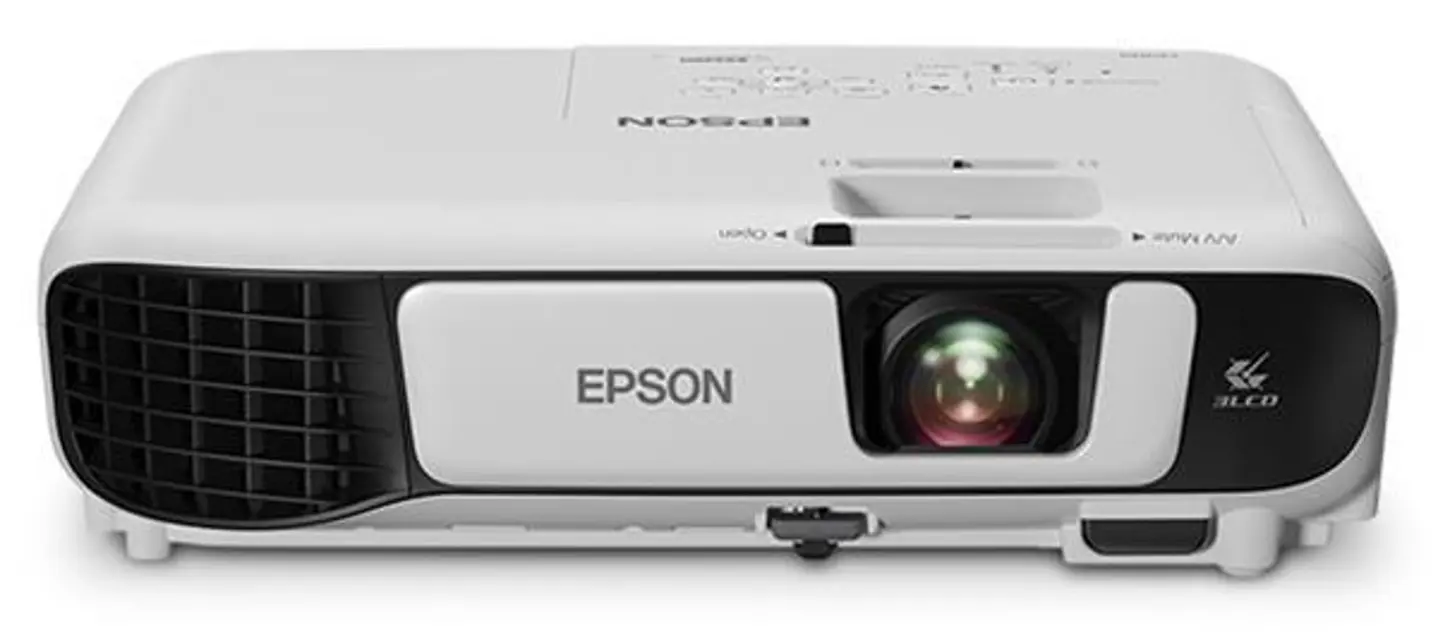

Epson Multimedia Projector EB-X05

You need to replace the air filter in the following situations:

• After cleaning the air filter, you see a message telling you to clean or replace it

• The air filter is torn or damaged

You can replace the air filter while the projector is mounted to the ceiling or placed on a table.

1. Turn off the projector and unplug the power cord.

3. Pull the air filter out of the projector.

Dispose of used air filters according to local regulations.

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Projector turned off and unplugged?

To remove dust or dirt, use a soft, dry, lint-free cloth.

To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid directly on the projector.

Attention: Do not use wax, alcohol, benzene, paint thinner, or other chemicals to clean the projector case. These can damage the case. Do not use canned air, or the gases may leave a flammable residue.

Sign off on the projector case cleaning

Safety Instructions: Make sure you read the Safety Instructions before handling the batteries.

Remove the battery cover as shown.

Insert the batteries with the + and– ends facing as shown.

Warning! Check the positions of the (+) and (–) marks inside the battery holder to ensure the batteries are inserted the correct way. If the batteries are not used correctly, they could explode or leak causing a fire, injury, or damage to the product.

Replace the battery cover and press it down until it clicks into place.

Sign off on the battery replacement procedure

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Projector turned off and power cord unplugged

Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface.

Lens cleaned with lens-cleaning paper

To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the lens. Do not spray any liquid directly on the lens.

Stubborn smudges removed with moistened cloth

Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the projector lamp may cause a fire.

Attention: Do not use glass cleaner or any harsh materials to clean the lens and do not subject the lens to any impacts; otherwise, it could be damaged. Do not use canned air, or the gases may leave a flammable residue.

Sign off on the projector lens cleaning

Warning: This procedure requires trained personnel with PPE!

Warning: Let the lamp fully cool before replacing it to avoid injury.

Warning: Never disassemble or modify the lamp. If a modified or disassembled lamp is installed in the projector, it could cause a fire, electric shock, or other damage or injury.

Warning: When replacing the lamp, there is a possibility that the lamp may be broken.

Warning: Do not touch any glass on the lamp assembly to avoid premature lamp failure.

Warning: Make sure the lamp cover is securely installed or the lamp will not turn on.

Warning: Do not replace the lamp cover with too much force and make sure the lamp cover is not deformed.

Warning: Do not reset the lamp timer if you have not replaced the lamp to avoid inaccurate lamp usage information.

Is the projected image getting darker or quality declining?
