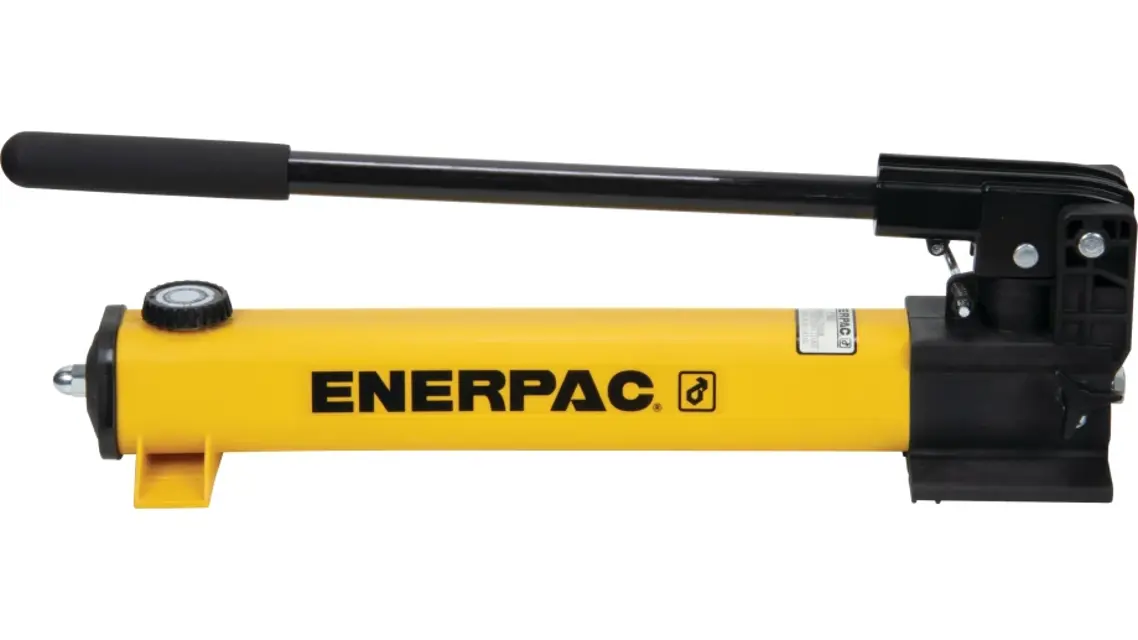

Enerpac Hand Pump P392
Create an account to install this asset package.
Maintenance Plans for Enerpac Hand Pump Model P392
Integrate maintenance plans directly into your work orders in MaintainX.
1 Year Hand Pump Oil Replacement
Drain all oil from the pump
Refill with clean Enerpac oil
Remove vent/fill cap or plug from reservoir
Tilt pump to drain out old oil
Fill reservoir only to level mark shown on pump
Replace the vent/fill cap or plug
Dispose of used oil properly
Sign off on the oil replacement
Adding Oil to the Pump
WARNING: Always add oil with cylinders fully retracted (extended if pull cylinders) or the system will contain more oil than the reservoir can hold.
NOTE: Non-vented hand pumps require air in the reservoir to function properly. If the reservoir is completely filled, a vacuum will form preventing oil from flowing out of the pump.
Cylinders fully retracted?
Vent/fill cap removed from reservoir?
Oil level in the reservoir
Air removed from system if necessary?
Vent/fill cap returned to proper position?
Sign off on the oil addition to the pump
Hand Pump Maintenance
Keeping Oil Lines Clean
Are the coupler halves disconnected?
Screw on dust caps
Use every precaution to guard unit against entrance of dirt because foreign matter may cause pump, cylinder, or valve failure.
Lubricating the Pump
Lubricate the beam pin, cross pin, and piston head regularly, using roller bearing grease.
Sign off on the hand pump maintenance
Parts for Enerpac Hand Pump P392
Access the parts list for your equipment in MaintainX.
Vent Cap
CN766950SR
End Cap
CN814020SR
Tie Rod
CL127149
Reservoir
CR72025SR
Beam And Handle
CL918900SR
Vent Cap
CN766950SR
End Cap
CN814020SR
Tie Rod
CL127149
Reservoir
CR72025SR
Beam And Handle
CL918900SR
Vent Cap
CN766950SR
End Cap
CN814020SR
Tie Rod
CL127149
Reservoir
CR72025SR
Beam And Handle
CL918900SR
