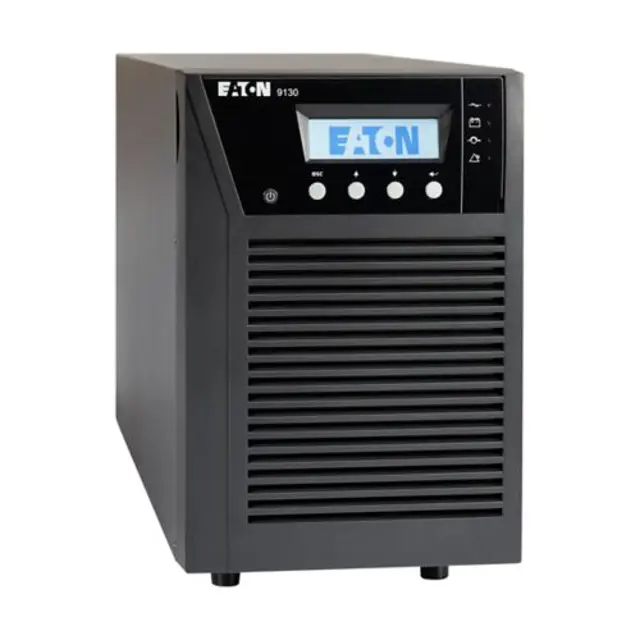

Eaton Uninterruptible Power System PW9130L700T-XL

Warning: Only trained personnel should perform the battery test

UPS plugged into a power outlet for 48 hours

CONTROL then START BATTERY TEST selected

UPS transfers to Battery mode and discharges the batteries for 25 seconds

Front panel displays “Battery test running” and the percentage of the test completed

Warning: Only trained personnel should perform this procedure

Is the UPS connected to utility power?

Enter the battery recharge date from the shipping carton label

Sign off on the battery service

Remove the UPS right front cover

Disconnect the internal battery connector

If the EBM cable is not connected to an EBM, unclip the EBM cable and move it to the left out of the way

Grasp an edge of the battery cover plate and pull it forward gently. Remove and retain the battery cover plate

Carefully pull the handle on the battery tray and slide the battery package slowly out onto a flat, stable surface; use two hands to support the battery package

Slide the new battery package into the cabinet. Push the battery package in firmly

Replace the battery cover plate onto the screw mounts, threading the battery connector through the access slot

Reconnect the internal battery connector. Connect red to red, and black to black. Press the two parts tightly together to ensure a proper connection

If the EBM cable is not connected to an EBM, clip the EBM cable back into its holder on the battery cover plate
