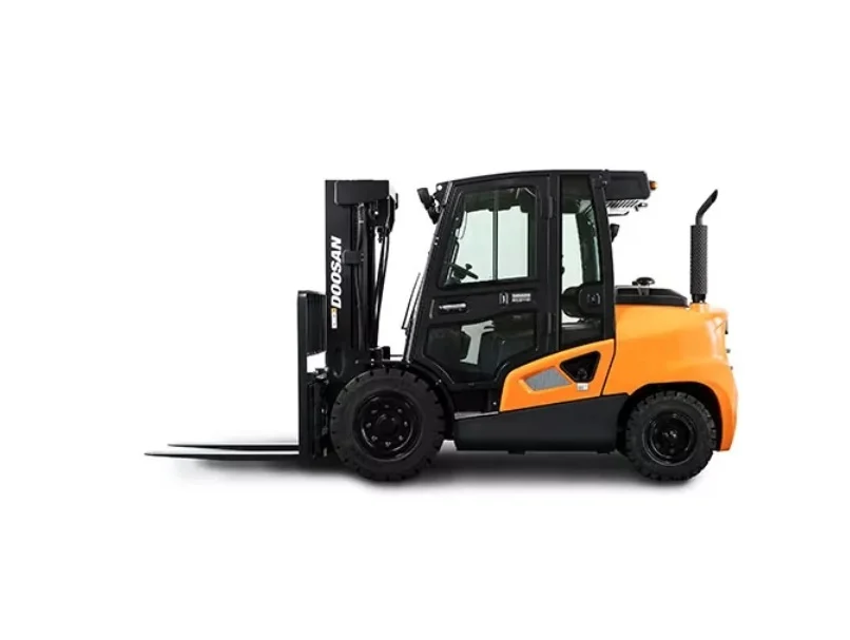

Doosan Doosan Forklift D35C-9 D35C-9

Inspection from Operator's Seat, Engine OFF

Push the front side of the parking brake switch to engage the brake

Push the rear side of the parking brake switch to release it

Inspection from Operator's Seat, Engine ON

With the parking brake engaged, the direction control lever in NEUTRAL and the engine running, shift the direction control lever to FORWARD

The lift truck should not move forward or feel like it wants to move forward, even when the engine is accelerated briefly

Repeat this procedure in REVERSE

Report truck movement or tendency to move under power with the parking brake engaged

NOTICE! Never service precleaner with the engine running

Check the precleaner bowl for dirt build-up

If the dirt is up to the line, remove the precleaner bowl and empty it

Periodically wash the cover and bowl in water

Sign off on the precleaner maintenance

WARNING! Hot oil and components can cause personal injury. Do not allow hot oil or components to contact skin

Raise the hood and seat assembly

The oil level is close as possible to upper point of the oil dip stick

Did you refill more than upper point?

Sign off on the engine oil level check

WARNING: Servicing and changing tires and rims can be dangerous and should be done only by trained personnel using proper tools and procedures

If correct procedures are not followed while servicing tires and rims, the assemblies could burst with explosive force and cause serious physical injury or death

Follow carefully the specific information provided by your tire servicing man or dealer

Inspect tires for wear, cuts, gouges and foreign objects

Look for bent rims and correct seating of locking ring

Check tires for proper inflation. See “Tire Inflation Pressures”

To inflate tires always use a clip-on chuck with a minimum 60 cm (24 inches) length of hose to an in-line valve and gauge

Always stand behind the tread of the tire. NOT in front of the rim

Do not re-inflate a tire that has been run while flat or underinflated, without first checking to make sure the locking ring on the rim is not damaged and is in the correct position

NOTICE! OSHA requires the parking brake to hold the lift truck, with capacity load, on a 15% grade. Testing requires a test load equal to the capacity of the truck and a 15% grade.

If the maximum grade in the workplace is less than its capacity, use the Parking Brake inspection procedure covered in ‘Inspection from Operator’s Seat, Engine On’ in “Every 10 Service Hours or Daily” section.

Pick up capacity load and drive over to a 15% grade

Halfway up the grade, stop the lift truck with its service brakes

Engage the parking brake and slowly release the service brake

Engage the parking brake and shift the transmission to NEUTRAL

Slowly release the service brakes

The parking brake adjustment is proper if it holds the lift truck on the grade
