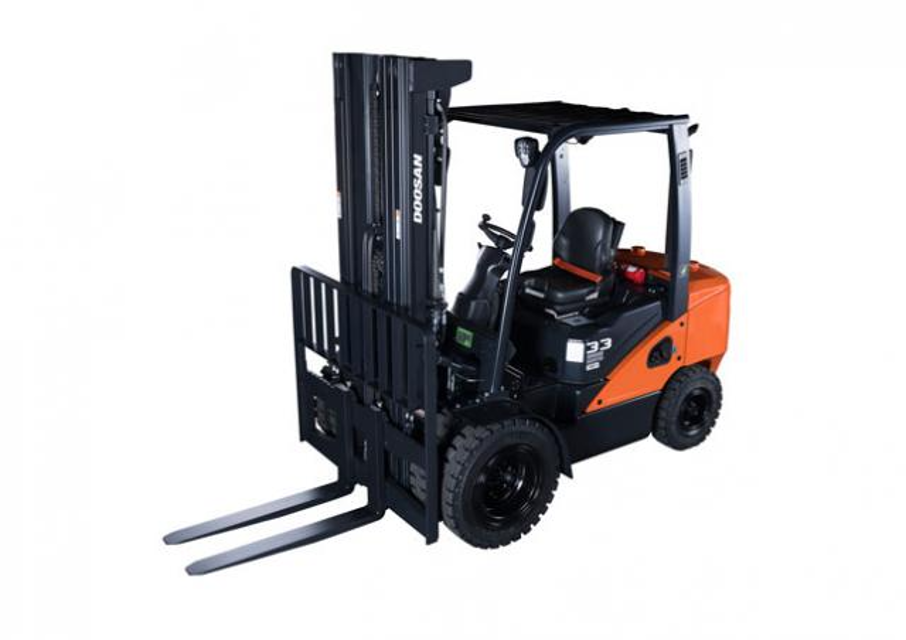

Doosan Doosan Forklift D33S-9 D33S-9

Warning: This procedure should be performed by trained personnel only.

Engine priming completed at factory?

Fuel system drained and refueled?

Fuel filter and other parts replaced?

Water drained from oil-water separator?

Spilled fuel cleaned up and disposed of properly?

Engine not cranked with the starting motor to feed the fuel system?

Warning: Ensure the machine is turned off and secured before starting the procedure

Check if the channels on the roller-type mast are clean

Upload a photo of the channels before lubrication

Enter the type of lubricant used

Apply a light film of lubricant on the channels where the rollers ride

Upload a photo of the channels after lubrication

Sign off on the mast channel lubrication

Warning: Always ensure the compressor is switched off and disconnected from the power source before performing any maintenance tasks.

Check the air filter every 250 hours

Upload a photo of the air filter after 250 hours check

Replace the air filter every 500 hours

Upload a photo of the new air filter

Describe any foreign materials found in the sponge filter

Sign off on the filter maintenance

WARNING! Prior to any service or maintenance activity, Test Fuel System for Leaks

Engine check lamp indicates any fault related to water separator

If the engine check lamp indicates any fault related to water separator, remove the water in the separator immediately, regardless of regular maintenance schedule

Lower part of the fuel filter is the water separator, in which a sensor is installed to monitor water and contaminants and transmit warning signal to the indicator to notify the operator of the water accumulated in the separator

Drain the water in the water separator as follows

Place an approved container under the water separator for collecting the water and contaminants

Open the drain cock on the bottom of the water separator of the fuel filter

Drain the water in the water separator

WARNING! Hot oil and components can cause personal injury. Do not allow hot oil or components to contact skin

Park the lift truck level, with the forks lowered, parking brake engaged, direction control lever in NEUTRAL and the engine stopped

Remove drive axle drain plug and transmission drain plug

Allow the oil to drain into a suitable container

Check O-ring seal and replace if necessary

Remove the spring and the strainer

Wash the strainer assembly in clean, nonflammable solvent and dry it
