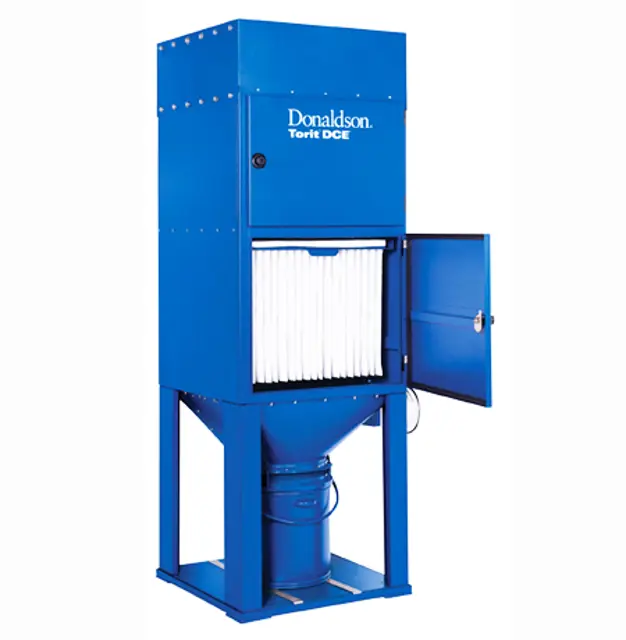

Donaldson Torit Dust Collecor UMA 150STU

Warning: This inspection requires trained personnel with PPE!

Any abnormal change in pressure differential across the filter assembly?

Enter the filter resistance in mm WG

For UMA 750 collectors, a resistance of 125 to 175 mm WG may be expected.

Is the secondary or absolute filter monitor functioning properly?

Door fastener threads lubricated?

Ignition minimising fans are fitted with a lining inside the casing?

Sign off on the dust collector inspection

Isolate electrical supply and remove fan chamber lid

Disconnect electrical wiring to terminal box

Remove the four bolts securing the motor drive bed-plate and withdraw the complete assembly from the unit case

Loosen, but do not remove, the four socket screws in the base flange and withdraw drive cover

Remove the six nuts securing flange of bearing housing to the bed-plate and withdraw the housing

Remove fan pulley and the six bolts securing the fan case

Remove fan impeller and fan case

Remove end caps and spacers from fan bearing housing

Fan assembly removal/replacement (UMA 70-750)

Isolate electrical power supply.

2 On UMA 750 collectors only – Remove door frame centre member, remove mattress support frame from its storage position and remove fork lifting beam.

3 Disconnect electrical cables from terminal box.

4 Remove fan outlet grille cover plate.

6 The fan assembly can now be removed using a suitable lifting arrangement.

Renewing fan impeller and/or motor:

Every 1000 working hours the following parts should be checked:

2) Rubber seals – for tears and over-compression.

3) Shaker mechanism with particular attention to:

- Broken locators on shaker bar.

- Torn shaker bar support strap(s).

1 Isolate electrical controls and open fan and filter chamber access doors.

2 Fully slacken the four captive wing-nuts located in the fan chamber, on the top plate of venting type collectors or in the side outlet box.

3 With the aid of a colleague, withdraw the complete filter assembly through the front of the filter chamber.

4 Remove wire mesh insert frames from individual filter bags. These should be checked for broken mesh and worn material edgings, especially around the area of any filter bag damage.

5 Detach filter bag assembly from supporting frame.

6 Fit new filter bag assembly into supporting frame, feeding individual filter bags between locating bars, and fold collar over peripheral sealing flange.

7 Prior to fitting wire mesh inserts, any material edgings that need replacing should be fitted around the three edges of the insert that do not have the insert frame joint. The inserts should then be fitted, edging first, into the filter bags.
