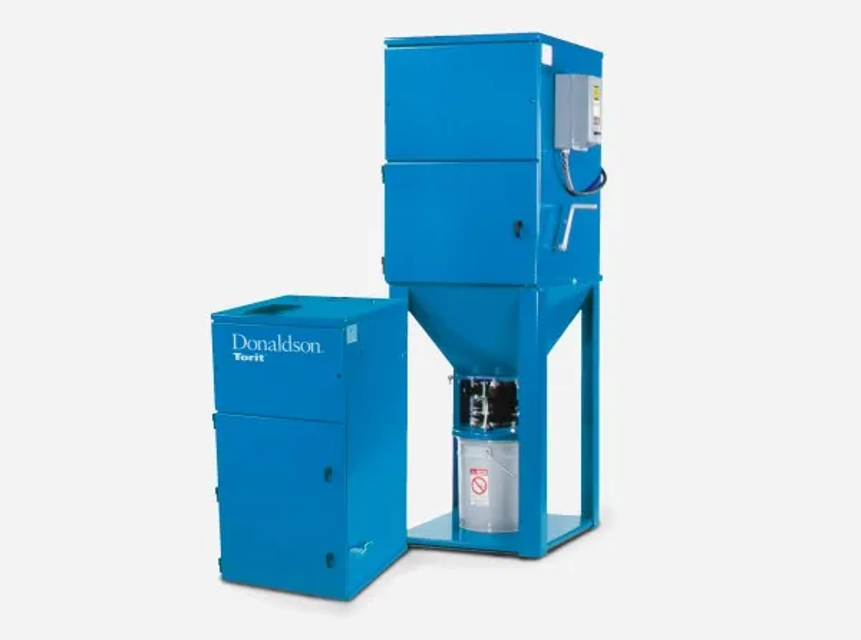

Donaldson Torit Cabinet Collector 66 Cabinet

- Use proper safety and protective equipment when removing contaminants and filters

- Dirty filters may be heavier than they appear

- Use care when removing filters to avoid personal injury and/or property damage

- Turn power off and lock out electrical power sources before performing service or maintenance work

- Do not operate with missing or damaged filters

1. Remove upper door and open lower door

2. Loosen the filter pack slide latch wing screws and move the slide latches away from the gasket by sliding them inward. Note, this is easier when the filter pack is supported with one hand on the bottom side

3. Remove the center support bar by unscrewing the wing screws on each end. Note, this is easier when the filter pack is supported with one hand on the bottom side

WARNING: Use proper equipment and adopt all safety precautions needed for servicing equipment

Use appropriate access equipment and procedures. Note the standard collector is not equipped with access platforms unless noted on the specification drawings

Electrical service or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes

Turn power off and lock out electrical power sources before performing service or maintenance work

Do not install in classified hazardous atmospheres without an enclosure rated for the application

Monitor the physical condition of the collector and repair or replace any damaged components. Routine inspections will minimize downtime and maintain optimum system performance. This is particularly important on continuous-duty applications

Monitor pressure drop across filters. Abnormal changes in pressure drop may indicate a change in operating conditions and possibly a fault to be corrected

WARNING! Use proper safety and protective equipment when removing contaminants and filters. Dirty filters may be heavier than they appear. Use care when removing filters to avoid personal injury and/or property damage. Turn power off and lock out electrical power sources before performing service or maintenance work. Do not operate with missing or damaged filters.

Cleaning pedal or handle depressed

Cleaning pedal or handle released to drop rapidly

Number of times step 5 repeated

Filter access door opened and dust removed from dust drawer

Choose the drum attachment used

Close gate before servicing drum

- Use proper safety and protective equipment when removing contaminants and filters

- Dirty filters may be heavier than they appear

- Use care when removing filters to avoid personal injury and/or property damage

- Turn power off and lock out electrical power sources before performing service or maintenance work

- Do not operate with missing or damaged filters

1. Remove upper and lower doors to access the filters

2. Loosen both set screws on the front and rear hold down brackets
