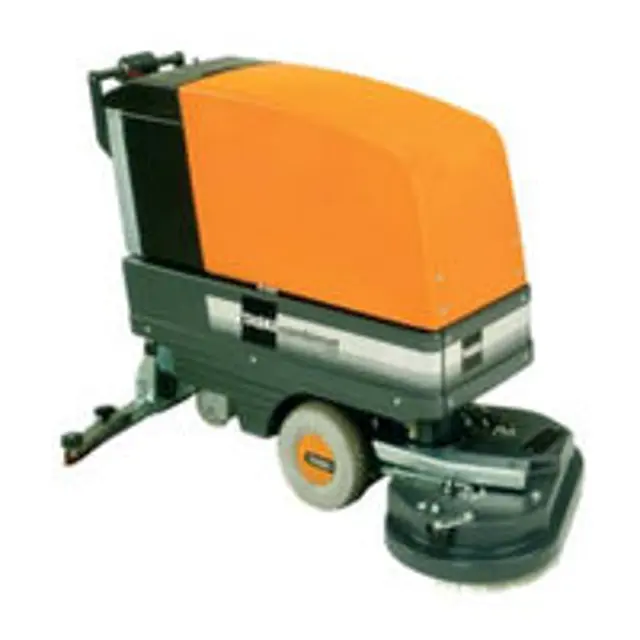

Diversey Combimat 1700

Turn off the machine using the main switch

Wipe down the machine with a moist cloth

Ensure no high water pressure or water hose is used

Turn the machine on (main switch)

Lift the brush unit by pressing the button

Select the lever brush unit option

Lift the brush unit by pressing the brush lever down, turning it to the right, pushing it up until the end of the guide, then turning it left to snap in

Turn off the machine (main switch)

Measure the acidity in every cell

Enlist the acidity measurements into the booklet

Check connectors, cable, cable connections and the poles are screwed-in tightly

Turn off the machine (main switch)

Adjust according to the drawing on the right side

Adjust according to the drawing on the right side

Describe any issues encountered during adjustment

Turn off the machine (main switch)

Open the machine hood (ca.45°), then take off the hood

Disconnect battery plug with external battery charger

Loosen the knurled nut and remove cover

Replace the cover on the holder
