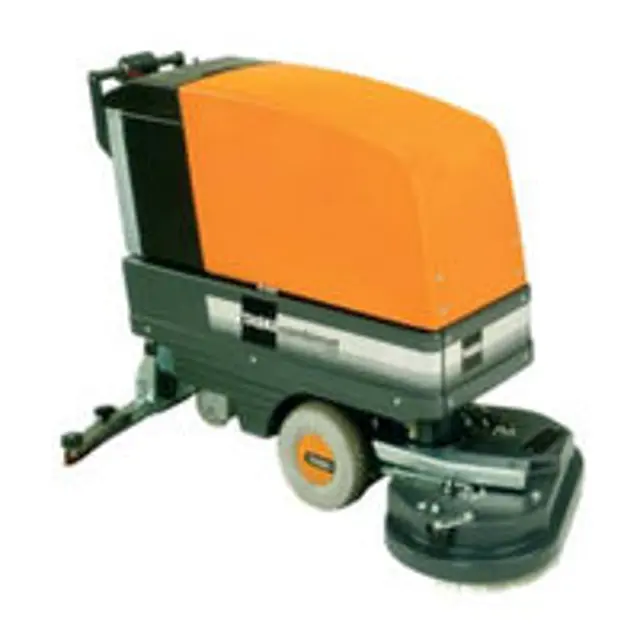

Diversey Combimat 1400

Turn off the machine (main switch)

Lift the squeegee lever with the foot

Loosen the fixation knobs on the squeegee

Clean the squeegee under running water with a brush

Wear gloves to protect your hands from injuries

Assemble the squeegee and tighten the fixation knobs

Confirm that the blades are clean for streak-free results

Turn off the machine (main switch)

Take hose (red cap) off its fittings

Open the cap at the height of the handle and lower the hose end slowly to pour out the soiled solution

Conduct the emptying hose to a drain sink or a bucket

Empty the recovery tank as described above

Turn off the machine (main switch)

Wipe down the machine with a moist cloth

Ensure no high water pressure or water hose is used

Turn off the machine (main switch)

Loose the hexagon bolt (6 mm spanner) of the squeegee adjustment

Adjust the squeegee according to the drawing on the right side

Adjust for insufficient suction at the outer end of the squeegee

Adjust for insufficient suction at the middle part of the squeegee

Measure the acidity in every cell

Enlist the acidity measurements into the booklet

Check connectors, cable, cable connections and the poles are screwed-in tightly
