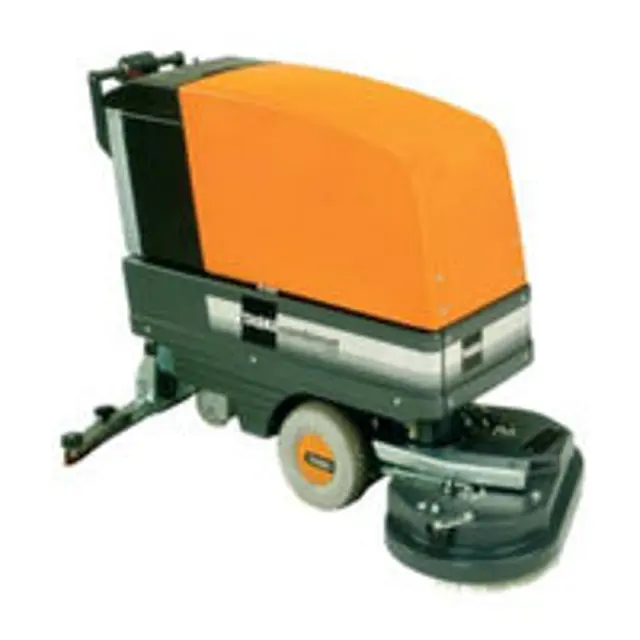

Diversey Combimat 1600

Turn off the machine (main switch)

Take hose (red cap) off its fittings

Open the cap at the height of the handle and lower the hose end slowly to pour out the soiled solution

Conduct the emptying hose to a drain sink or a bucket

Empty the recovery tank as described above

Caution: The recycling system is not to use in areas with high hygienic demand e.g. Hospitals, Food-processing companies, Kitchens, etc. The recycling system is recommended for low till middle congested areas only

Turn off the machine (main switch)

Empty the recovery tank (Page 17)

Take off the tank cover/dosing cup

Remove the recycling filter of the recovery tank

Rinse the recycling standpipe of the filter thoroughly

Measure the acidity in every cell

Enlist the acidity measurements into the booklet

Check connectors, cable, cable connections and the poles are screwed-in tightly

Turn the machine on (main switch)

Check that the indicators light up

Select the lever brush unit option

Press the button to lift the brush unit

Press the brush lever down, turn it to the right and push it up until the end of the guide, then turn it left to snap in

Turn off the machine (main switch)

Loose the hexagon bolt (6 mm spanner) of the squeegee adjustment

Adjust the squeegee according to the drawing on the right side

Adjust for insufficient suction at the outer end of the squeegee

Adjust for insufficient suction at the middle part of the squeegee
