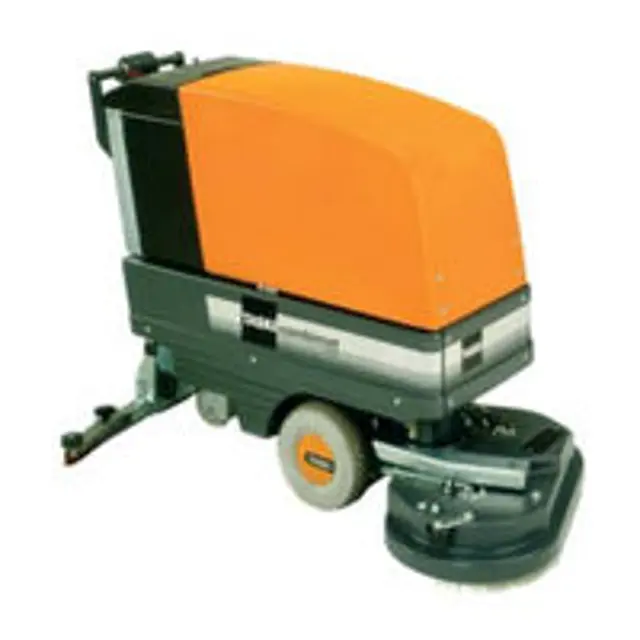

Diversey Combimat 1500

Ensure the machine is turned off by turning off the ignition key

Disconnect battery plug from the machine

Connect battery plug to the external battery charger

Remove the maintenance opening lid

Rinse the filter under running water

Turn off the machine (main switch)

Take off the tank cover/dosing cup

Take off the hose (blue cap) from its fittings

Open the cap at the height of the handle and lower the hose end slowly to pour out the soiled solution

Conduct the emptying hose to a drain sink or a bucket

Turn off the machine (main switch)

Loose the hexagon bolt (6 mm spanner) of the squeegee adjustment

Adjust the squeegee according to the drawing on the right side

Adjust for insufficient suction at the outer end of the squeegee

Adjust for insufficient suction at the middle part of the squeegee

Turn off the machine (main switch)

Take hose (red cap) off its fittings

Open the cap at the height of the handle and lower the hose end slowly to pour out the soiled solution

Conduct the emptying hose to a drain sink or a bucket

Empty the recovery tank as described above
