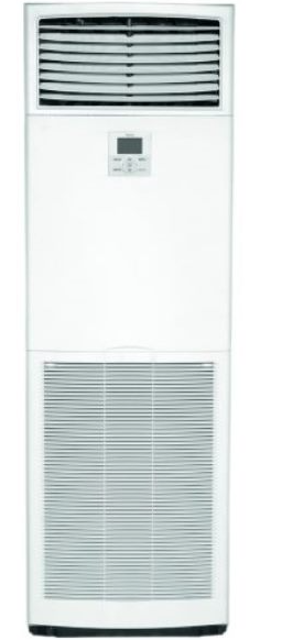

Daikin Split System Air Conditioner FVA140AMVEB

• If a stain cannot be removed, wipe it with a cloth firmly wringed after soaked in diluted neutral detergent. After that, wipe the area with a dry cloth.

• For cleaning, wipe the flaps while holding them by hand. (If the flaps are pressed too strong while cleaning, they may come off.)

• Do not use gasoline, benzene, thinner, polishing powder, or commercially supplied liquid insecticide. This may cause discoloration or deformation.

• Do not use water which is 50°C or more. This may cause discoloration or deformation.

[CLEANING BEFORE AND AFTER SEASONAL USE]

ONLY A QUALIFIED SERVICE PERSON IS ALLOWED TO PERFORM MAINTENANCE

WARNING: Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner.

CAUTION: Do not wash the air conditioner with water. Doing so may result in an electric shock and fire.

NOTE: Do not remove the air filter except for during cleaning. Doing so may damage the unit.

Unlock the suction grille. Pull up the lock lever to unlock it.

Open the suction grille. Slide it forward slowly.

Remove the air filters. Pull the filter up and out carefully.

Clean the air filter. Use vacuum cleaner or wash the air filter with water.

Reset the air filter in place. Reset the air filter along the filter guide of the suction grille using the reverse procedure of that in step 3.
